Product Specifications

Model

Specifications

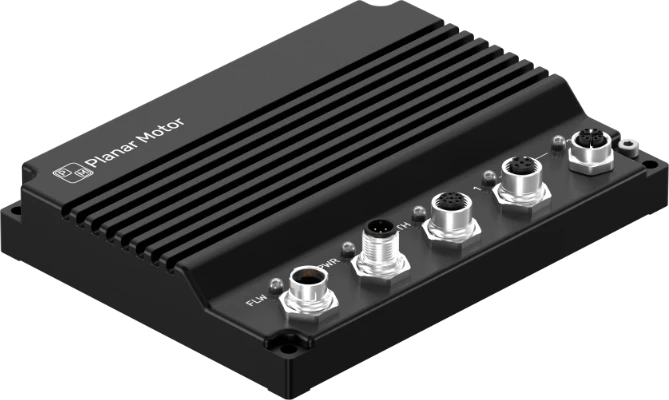

PMC

C-6.0

Dimensions:	179 x 136 x 29.5 mm
Supply Voltage:	18~60V DC
Power Consumption:	8W
Washdown:	Yes
Cooling:	Passive
Downloads:	2D / 3D

C-6.0 PMC

C-6.0 PMC

PMC	C-6.0
Dimensions:	179 x 136 x 29.5 mm
Supply Voltage:	18~60V DC
Power Consumption:	8W
Washdown:	Yes
Cooling:	Passive
Downloads:	2D / 3D

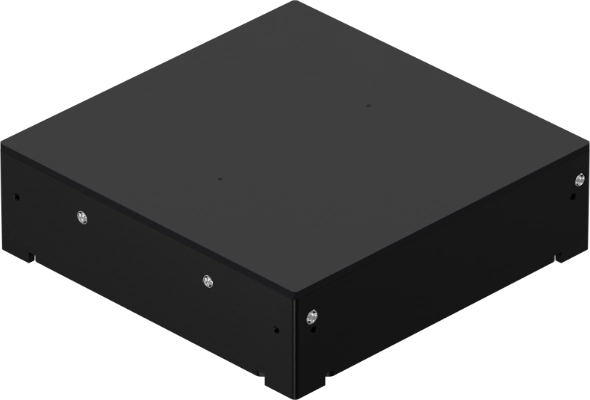

Flyway

S3-A

Dimensions:	240 x 240 x 70 mm
Supply Voltage:	48V DC
Power Consumption:	6W @ Standby
Washdown:	Yes
Cooling:	Passive / Liquid
Downloads:	2D / 3D / Installation Guide

S3-A Flyway

S3-A Flyway

Flyway	S3-A
Dimensions:	240 x 240 x 70 mm
Supply Voltage:	48V DC
Power Consumption:	6W @ Standby
Washdown:	Yes
Cooling:	Passive / Liquid
Downloads:	2D / 3D / Installation Guide

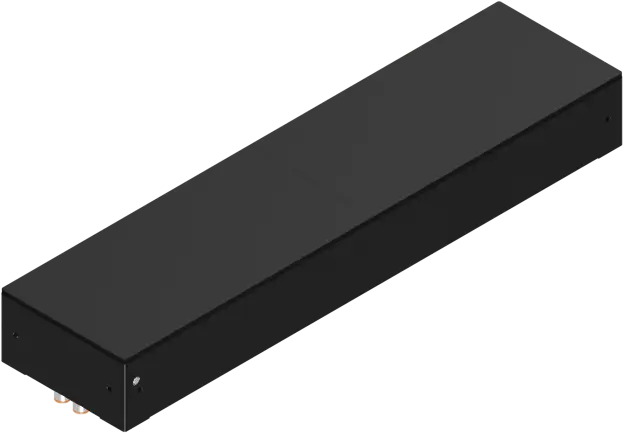

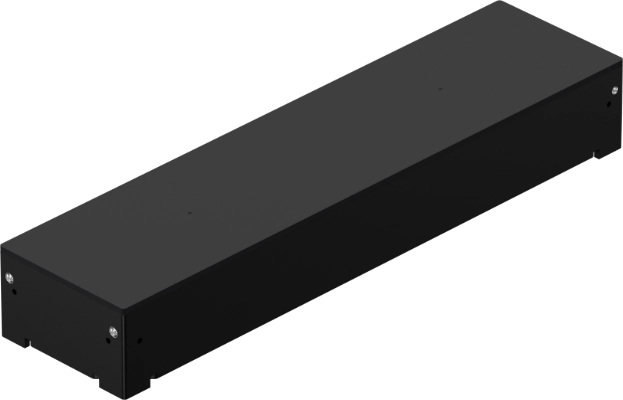

Flyway

S3-AN

Dimensions:	480 x 120 x 70 mm
Supply Voltage:	48V DC
Power Consumption:	6W @ Standby
Washdown:	Yes
Cooling:	Passive / Liquid
Downloads:	2D / 3D / Installation Guide

S3-AN Flyway

S3-AN Flyway

Flyway	S3-AN
Dimensions:	480 x 120 x 70 mm
Supply Voltage:	48V DC
Power Consumption:	6W @ Standby
Washdown:	Yes
Cooling:	Passive / Liquid
Downloads:	2D / 3D / Installation Guide

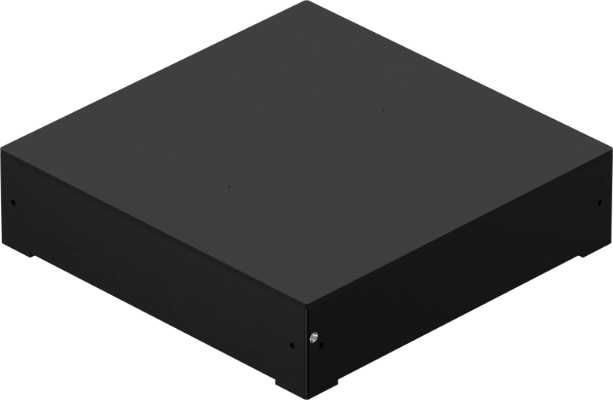

Flyway

S4-A

Dimensions:	320 x 320 x 80 mm
Supply Voltage:	48V DC
Power Consumption:	6W @ Standby
Washdown:	Yes
Cooling:	Passive / Liquid
Downloads:	2D / 3D / Installation Guide

S4-A Flyway

S4-A Flyway

Flyway	S4-A
Dimensions:	320 x 320 x 80 mm
Supply Voltage:	48V DC
Power Consumption:	6W @ Standby
Washdown:	Yes
Cooling:	Passive / Liquid
Downloads:	2D / 3D / Installation Guide

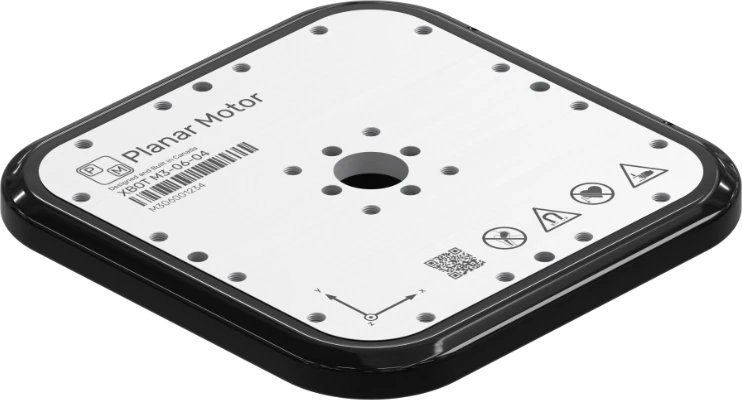

XBot

M3-06

Dimensions:	120 x 120 x 10 mm
Payload:	0.6 kg (1.3 lb)
Downloads:	2D / 3D

M3-06 XBot

M3-06 XBot

XBot	M3-06
Dimensions:	120 x 120 x 10 mm
Payload:	0.6 kg (1.3 lb)
Downloads:	2D / 3D

XBot

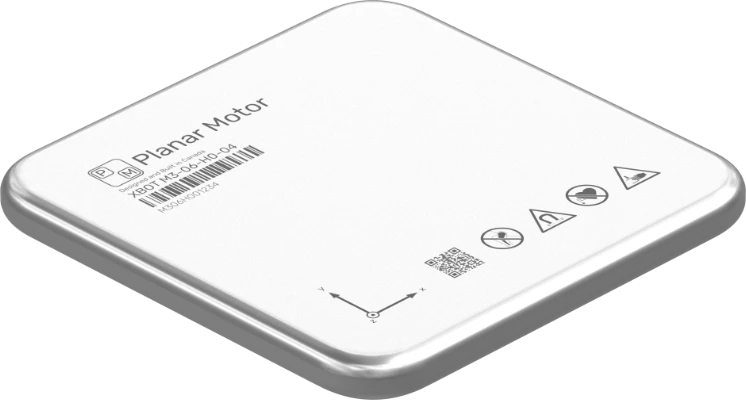

M3-06-H

Dimensions:	120 x 120 x 10 mm
Payload:	0.6 kg (1.3 lb)
Downloads:	2D / 3D

M3-06-H Hygienic XBot

M3-06-H Hygienic XBot

XBot	M3-06-H
Dimensions:	120 x 120 x 10 mm
Payload:	0.6 kg (1.3 lb)
Downloads:	2D / 3D

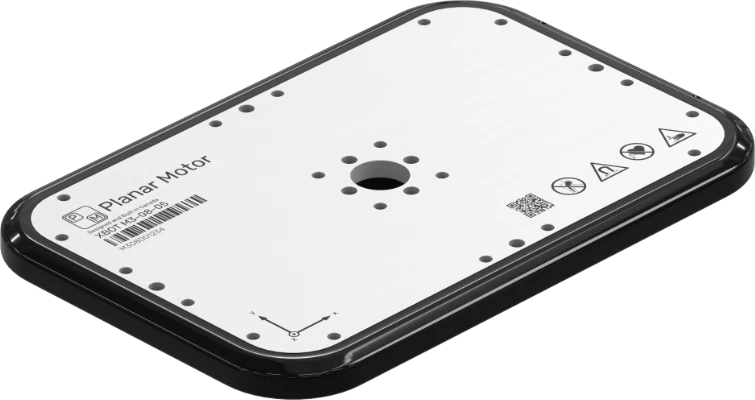

XBot

M3-08

Dimensions:	180 x 120 x 10 mm
Payload:	1.0 kg (2.2 lb)
Downloads:	2D / 3D

M3-08 XBot

M3-08 XBot

XBot	M3-08
Dimensions:	180 x 120 x 10 mm
Payload:	1.0 kg (2.2 lb)
Downloads:	2D / 3D

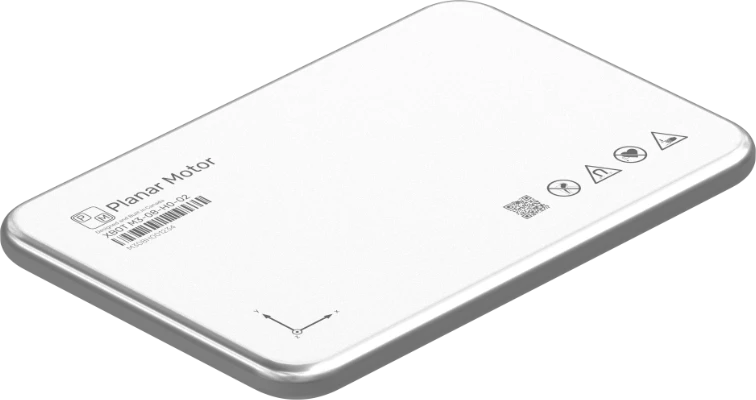

XBot

M3-08-H

Dimensions:	180 x 120 x 10 mm
Payload:	1.0 kg (2.2 lb)
Downloads:	2D / 3D

M3-08-H XBot

M3-08-H XBot

XBot	M3-08-H
Dimensions:	180 x 120 x 10 mm
Payload:	1.0 kg (2.2 lb)
Downloads:	2D / 3D

XBot

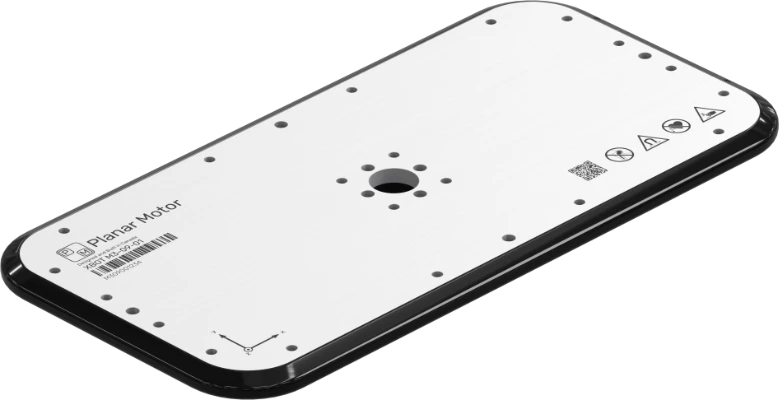

M3-09

Dimensions:	240 x 120 x 10 mm
Payload:	1.5 kg (3.3 lb)
Downloads:	2D / 3D

M3-09 XBot

M3-09 XBot

XBot	M3-09
Dimensions:	240 x 120 x 10 mm
Payload:	1.5 kg (3.3 lb)
Downloads:	2D / 3D

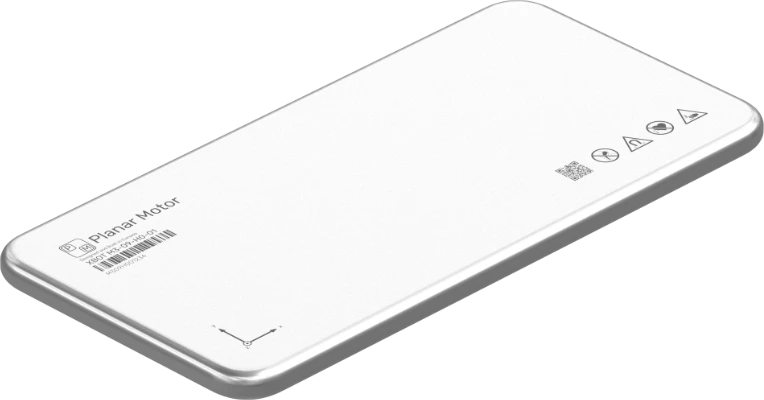

XBot

M3-09-H

Dimensions:	240 x 120 x 10 mm
Payload:	1.5 kg (3.3 lb)
Downloads:	2D / 3D

M3-09-H XBot

M3-09-H XBot

XBot	M3-09-H
Dimensions:	240 x 120 x 10 mm
Payload:	1.5 kg (3.3 lb)
Downloads:	2D / 3D

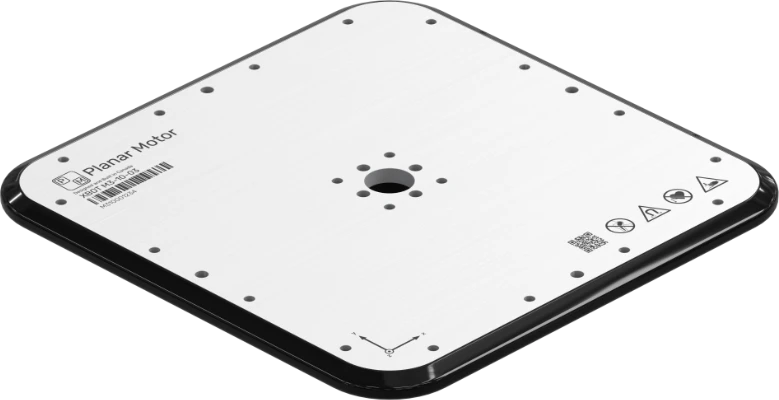

XBot

M3-10

Dimensions:	180 x 180 x 10 mm
Payload:	2.5 kg (5.5 lb)
Downloads:	2D / 3D

M3-10 XBot

M3-10 XBot

XBot	M3-10
Dimensions:	180 x 180 x 10 mm
Payload:	2.5 kg (5.5 lb)
Downloads:	2D / 3D

XBot

M3-11

Dimensions:	210 x 180 x 10 mm
Payload:	3.0 kg (6.6 lb)
Downloads:	2D / 3D

M3-11 XBot

M3-11 XBot

XBot	M3-11
Dimensions:	210 x 180 x 10 mm
Payload:	3.0 kg (6.6 lb)
Downloads:	2D / 3D

XBot

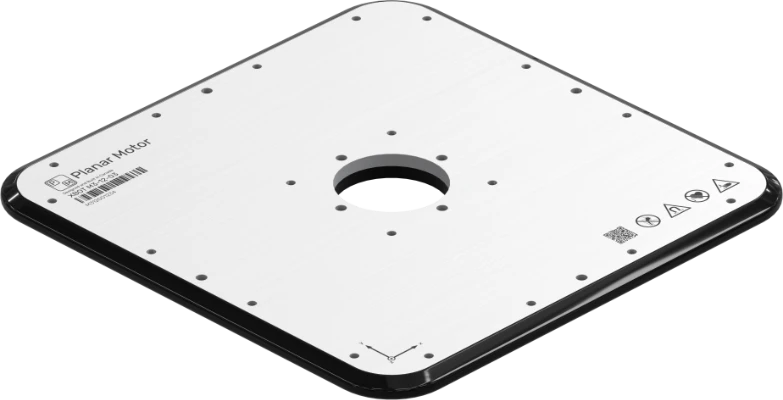

M3-12

Dimensions:	210 x 210 x 10 mm
Payload:	3.5 kg (7.7 lb)
Downloads:	2D / 3D

M3-12 XBot

M3-12 XBot

XBot	M3-12
Dimensions:	210 x 210 x 10 mm
Payload:	3.5 kg (7.7 lb)
Downloads:	2D / 3D

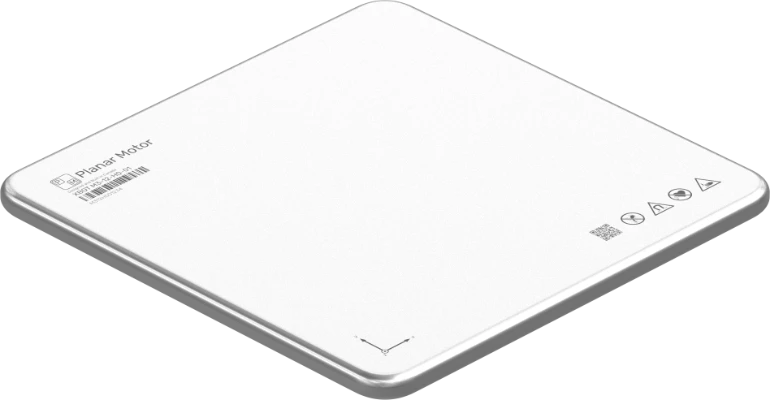

XBot

M3-12-H

Dimensions:	210 x 210 x 10 mm
Payload:	3.5 kg (7.7 lb)
Downloads:	2D / 3D

M3-12-H XBot

M3-12-H XBot

XBot	M3-12-H
Dimensions:	210 x 210 x 10 mm
Payload:	3.5 kg (7.7 lb)
Downloads:	2D / 3D

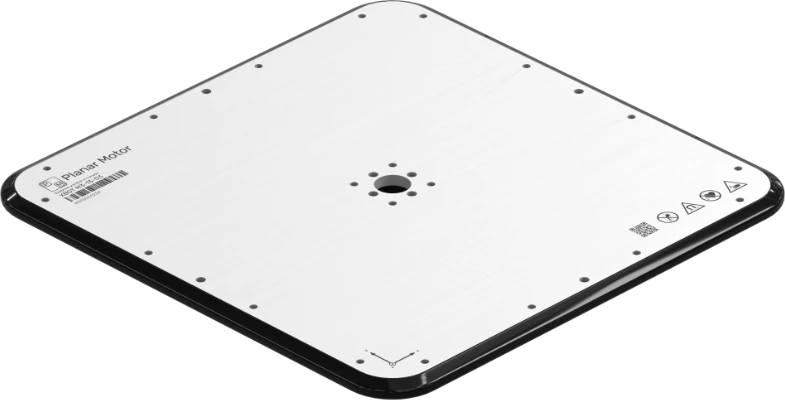

XBot

M3-13

Dimensions:	240 x 240 x 10 mm
Payload:	5.0 kg (11 lb)
Downloads:	2D / 3D

M3-13 XBot

M3-13 XBot

XBot	M3-13
Dimensions:	240 x 240 x 10 mm
Payload:	5.0 kg (11 lb)
Downloads:	2D / 3D

XBot

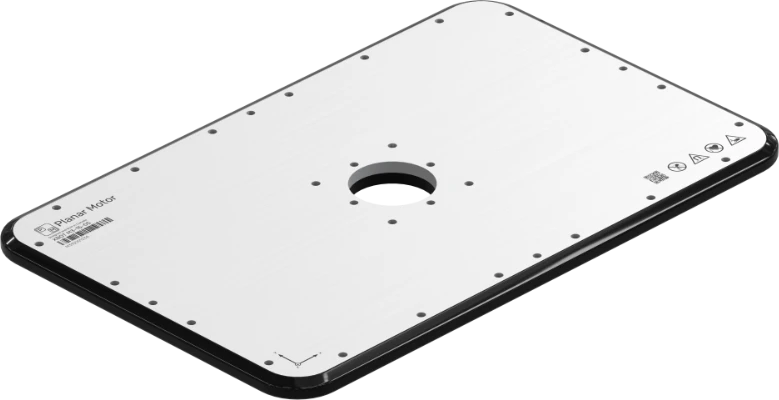

M3-15

Dimensions:	330 x 210 x 12 mm
Payload:	6.0 kg (13.2 lb)
Downloads:	2D / 3D

M3-15 XBot

M3-15 XBot

XBot	M3-15
Dimensions:	330 x 210 x 12 mm
Payload:	6.0 kg (13.2 lb)
Downloads:	2D / 3D

XBot

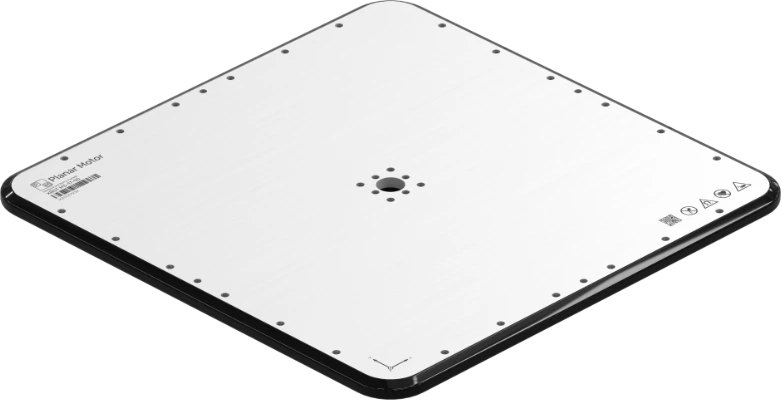

M3-17

Dimensions:	300 x 300 x 12 mm
Payload:	8.0 kg (17.6 lb)
Downloads:	2D / 3D

M3-17 XBot

M3-17 XBot

XBot	M3-17
Dimensions:	300 x 300 x 12 mm
Payload:	8.0 kg (17.6 lb)
Downloads:	2D / 3D

XBot

M3-18

Dimensions:	330 x 330 x 12 mm
Payload:	10.0 kg (23 lb)
Downloads:	2D / 3D

M3-18 XBot

M3-18 XBot

XBot	M3-18
Dimensions:	330 x 330 x 12 mm
Payload:	10.0 kg (23 lb)
Downloads:	2D / 3D

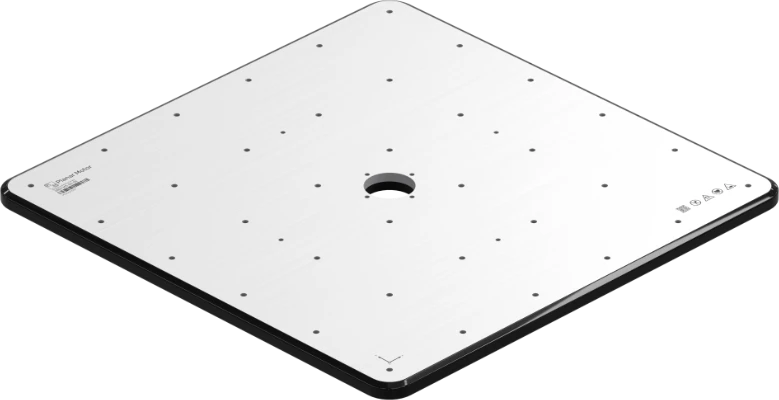

XBot

M3-25

Dimensions:	450 x 450 x 16 mm
Payload:	20.0 kg (46 lb)
Downloads:	2D / 3D

M3-25 XBot

M3-25 XBot

XBot	M3-25
Dimensions:	450 x 450 x 16 mm
Payload:	20.0 kg (46 lb)
Downloads:	2D / 3D

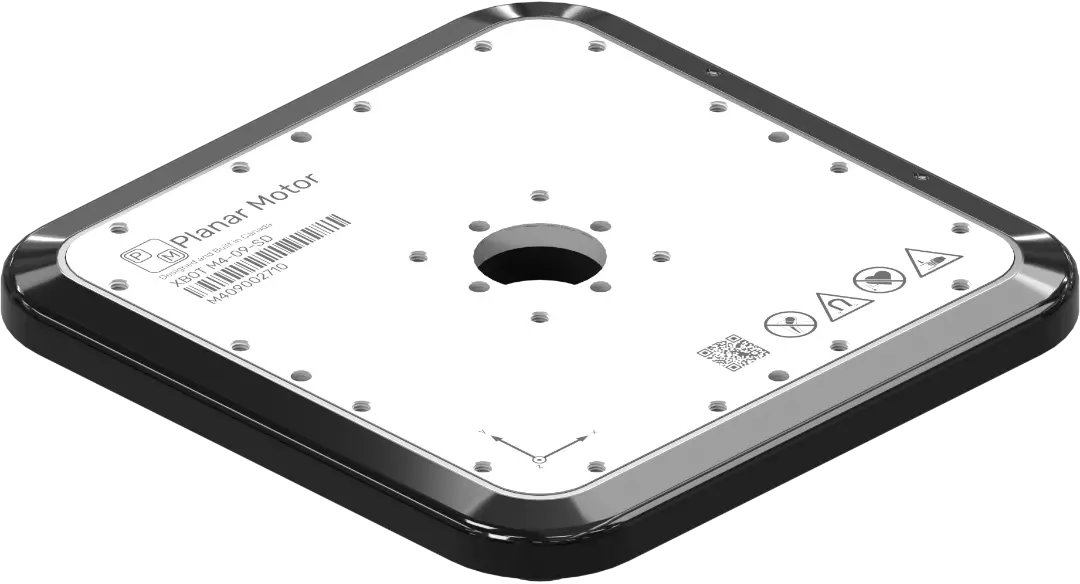

XBot

M4-09

Dimensions:	160 x 160 x 12 mm
Payload:	1.8 kg (4 lb)
Downloads:	2D / 3D

M4-09 XBot

M4-09 XBot

XBot	M4-09
Dimensions:	160 x 160 x 12 mm
Payload:	1.8 kg (4 lb)
Downloads:	2D / 3D

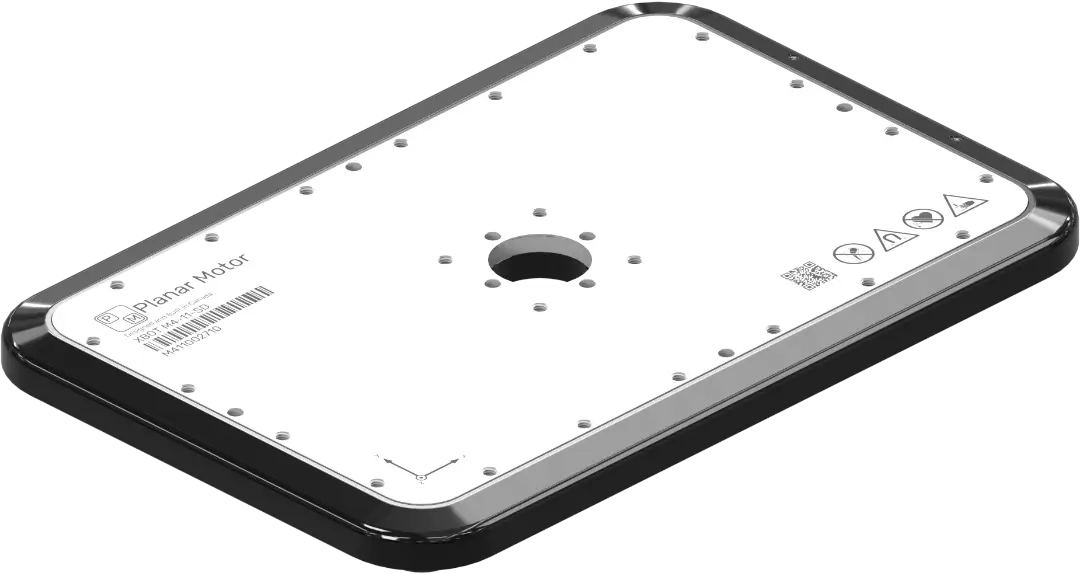

XBot

M4-11

Dimensions:	240 x 160 x 12 mm
Payload:	3.0 kg (6.6 lb)
Downloads:	2D / 3D

M4-11 XBot

M4-11 XBot

XBot	M4-11
Dimensions:	240 x 160 x 12 mm
Payload:	3.0 kg (6.6 lb)
Downloads:	2D / 3D

XBot

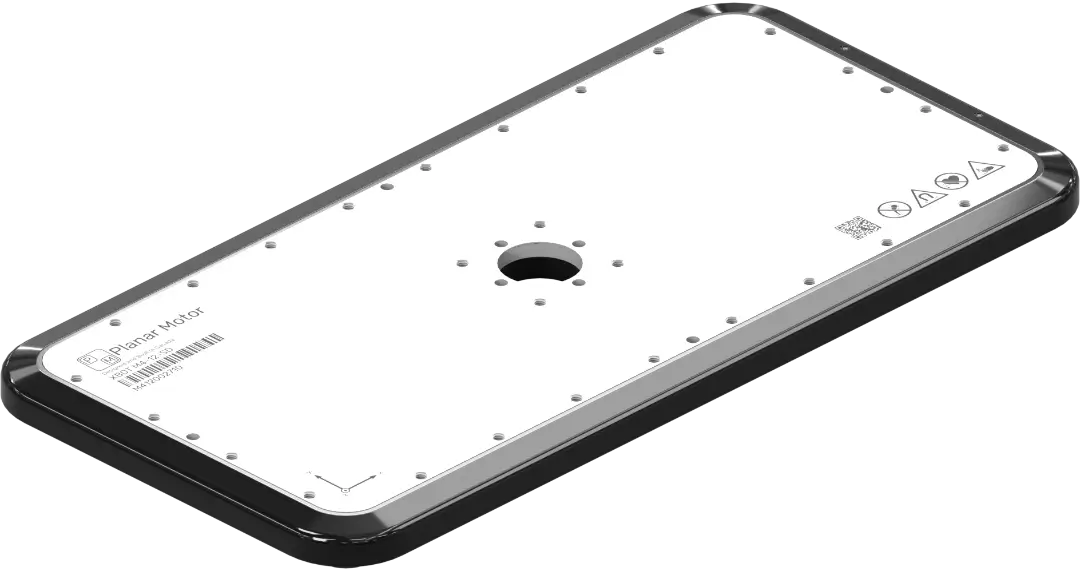

M4-12

Dimensions:	320 x 160 x 12 mm
Payload:	4.2 kg (9.3 lb)
Downloads:	2D / 3D

M4-12 XBot

M4-12 XBot

XBot	M4-12
Dimensions:	320 x 160 x 12 mm
Payload:	4.2 kg (9.3 lb)
Downloads:	2D / 3D

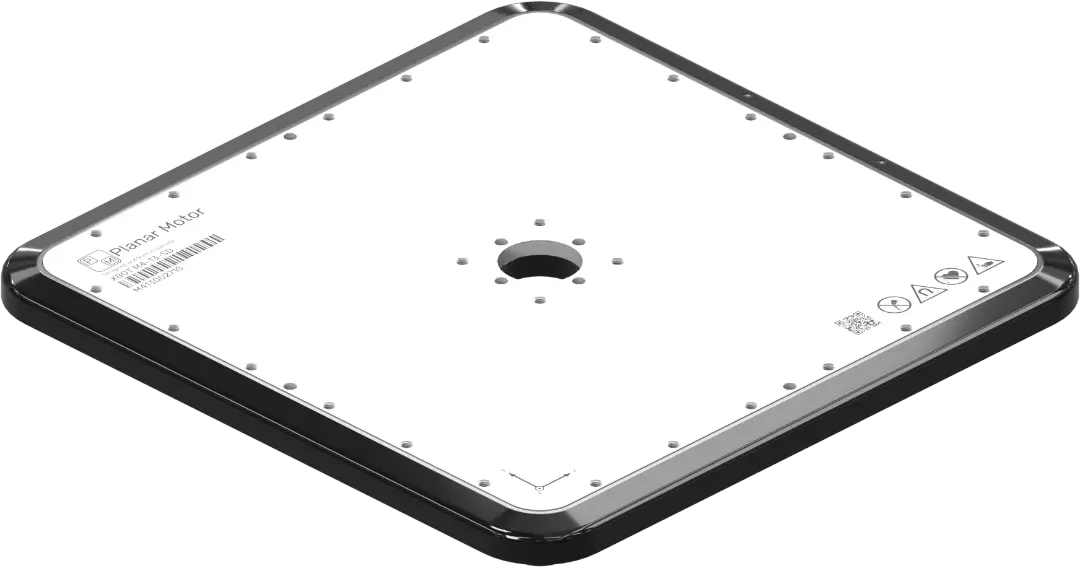

XBot

M4-13

Dimensions:	240 x 240 x 12 mm
Payload:	5.0 kg (11 lb)
Downloads:	2D / 3D

M4-13 XBot

M4-13 XBot

XBot	M4-13
Dimensions:	240 x 240 x 12 mm
Payload:	5.0 kg (11 lb)
Downloads:	2D / 3D

XBot

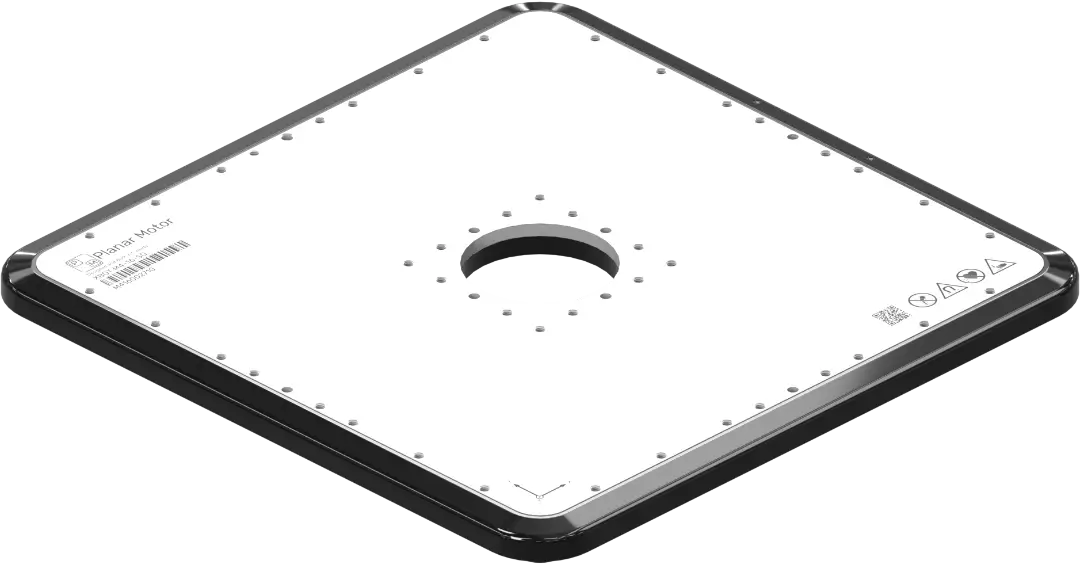

M4-16

Dimensions:	280 x 280 x 12 mm
Payload:	7.0 kg (15.4 lb)
Downloads:	2D / 3D

M4-16 XBot

M4-16 XBot

XBot	M4-16
Dimensions:	280 x 280 x 12 mm
Payload:	7.0 kg (15.4 lb)
Downloads:	2D / 3D

XBot

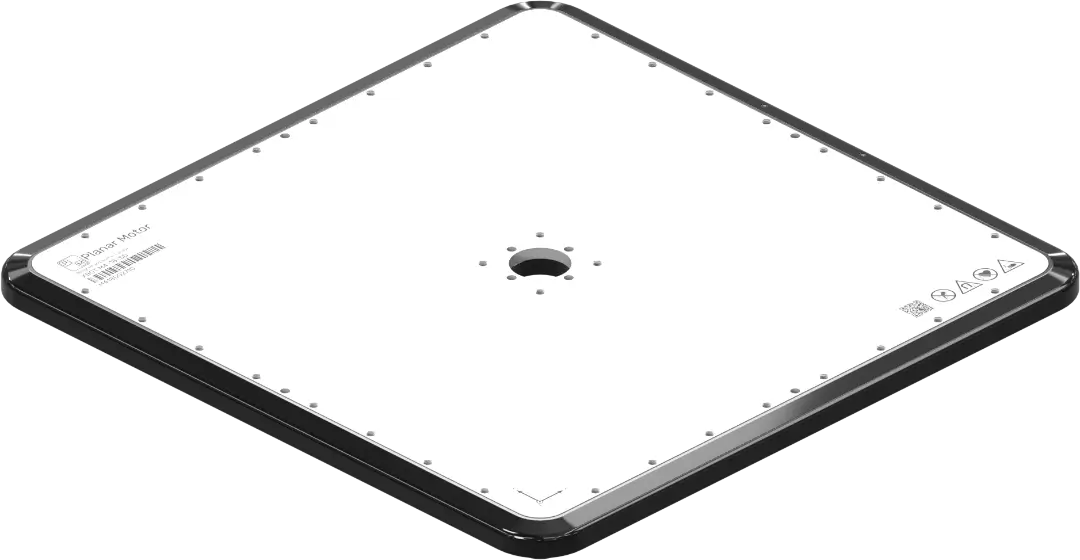

M4-18

Dimensions:	320 x 320 x 12 mm
Payload:	10.0 kg (22 lb)
Downloads:	2D / 3D

M4-18 XBot

M4-18 XBot

XBot	M4-18
Dimensions:	320 x 320 x 12 mm
Payload:	10.0 kg (22 lb)
Downloads:	2D / 3D

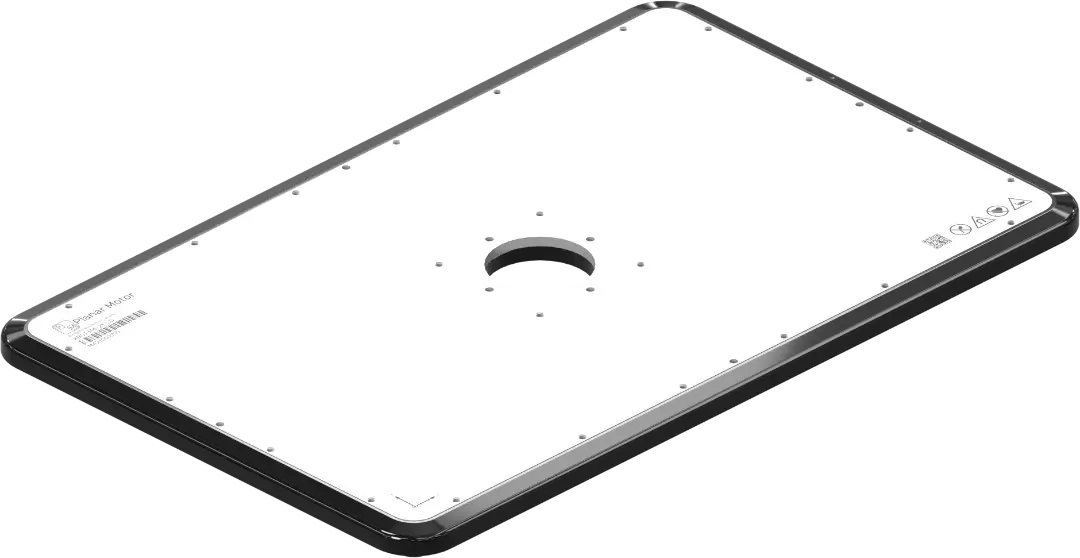

XBot

M4-20

Dimensions:	440 x 280 x 14 mm
Payload:	12.0 kg (26.5 lb)
Downloads:	2D / 3D

M4-20 XBot

M4-20 XBot

XBot	M4-20
Dimensions:	440 x 280 x 14 mm
Payload:	12.0 kg (26.5 lb)
Downloads:	2D / 3D

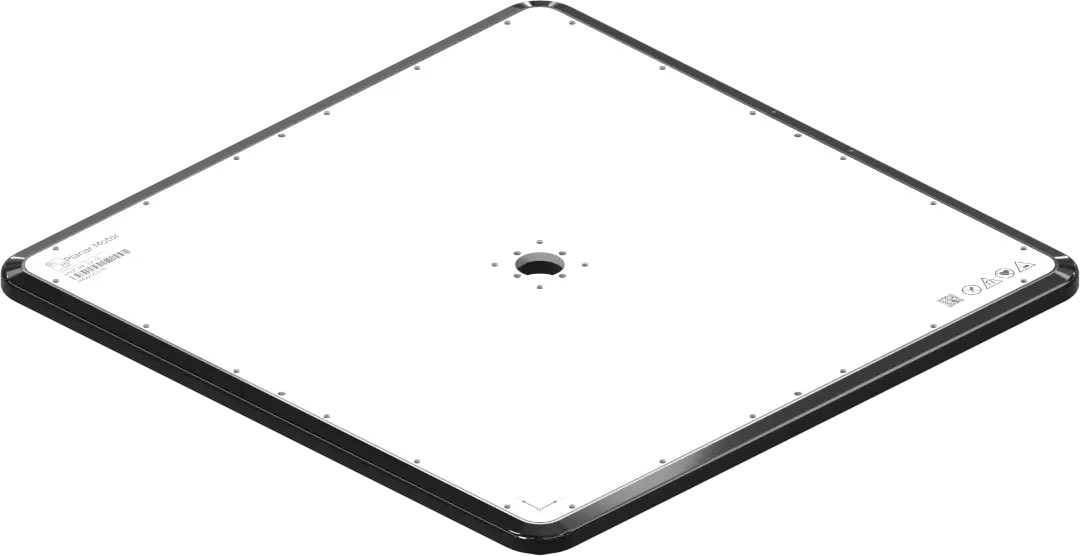

XBot

M4-22

Dimensions:	400 x 400 x 14 mm
Payload:	16.0 kg (35 lb)
Downloads:	2D / 3D

M4-22 XBot

M4-22 XBot

XBot	M4-22
Dimensions:	400 x 400 x 14 mm
Payload:	16.0 kg (35 lb)
Downloads:	2D / 3D

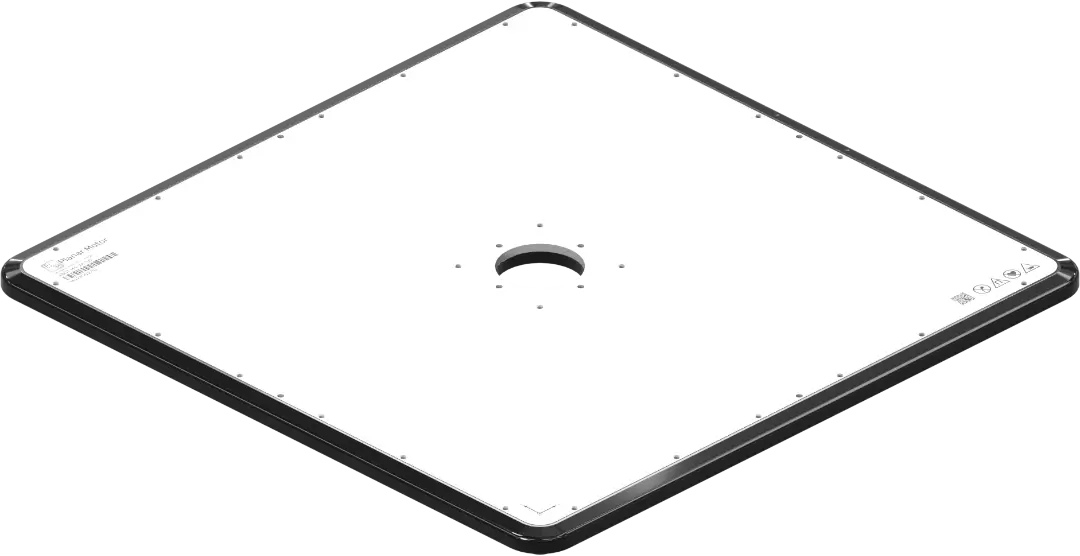

XBot

M4-24

Dimensions:	440 x 440 x 14 mm
Payload:	20.0 kg (44.1 lb)
Downloads:	2D / 3D

M4-24 XBot

M4-24 XBot

XBot	M4-24
Dimensions:	440 x 440 x 14 mm
Payload:	20.0 kg (44.1 lb)
Downloads:	2D / 3D

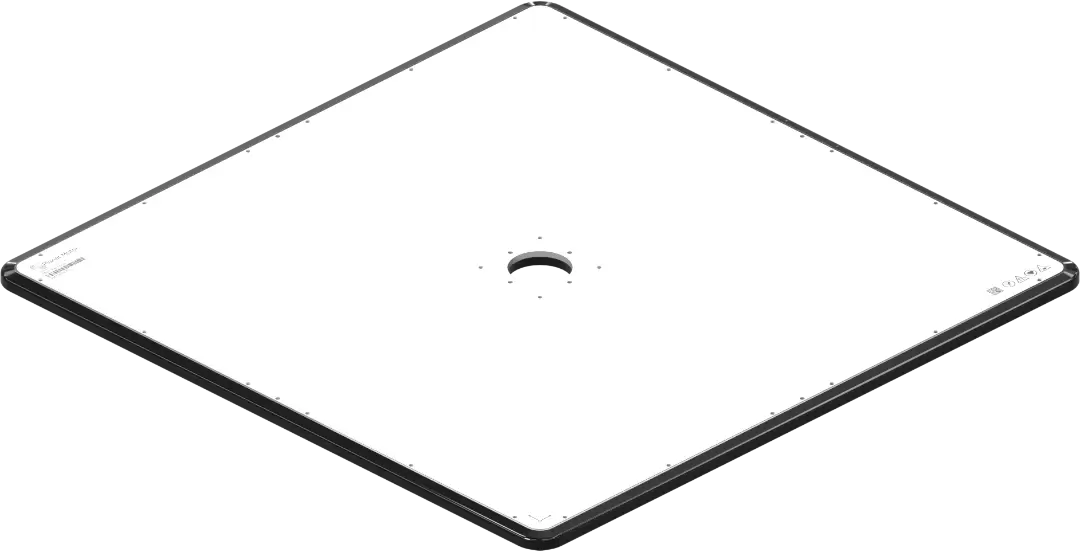

XBot

M4-33

Dimensions:	600 x 600 x 18 mm
Payload:	40.0 kg (88.2 lb)
Downloads:	2D / 3D

M4-33 XBot

M4-33 XBot

XBot	M4-33
Dimensions:	600 x 600 x 18 mm
Payload:	40.0 kg (88.2 lb)
Downloads:	2D / 3D
