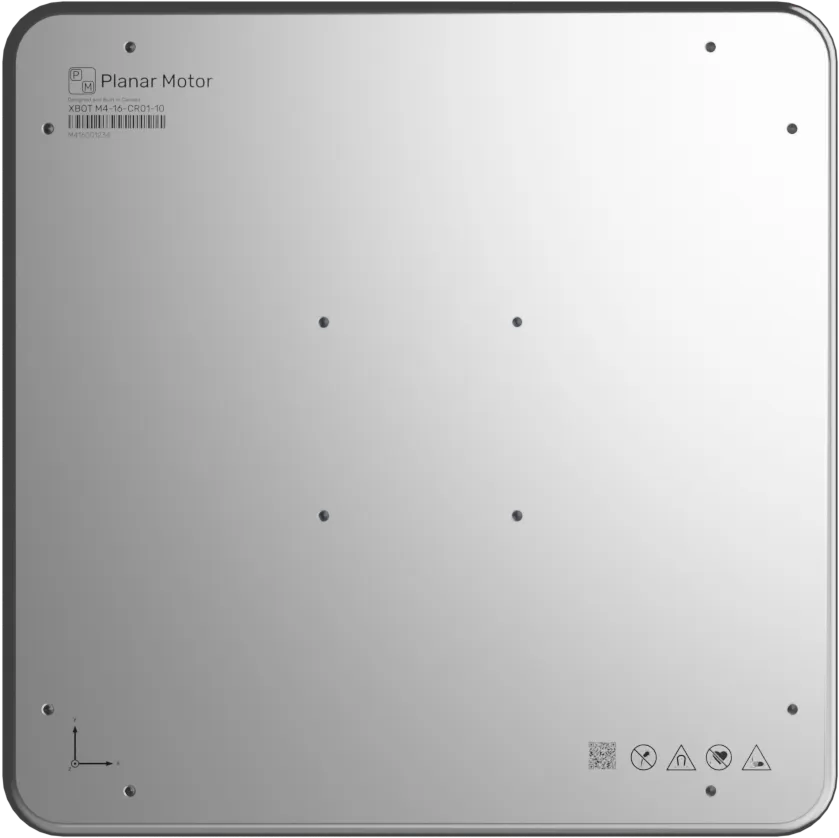

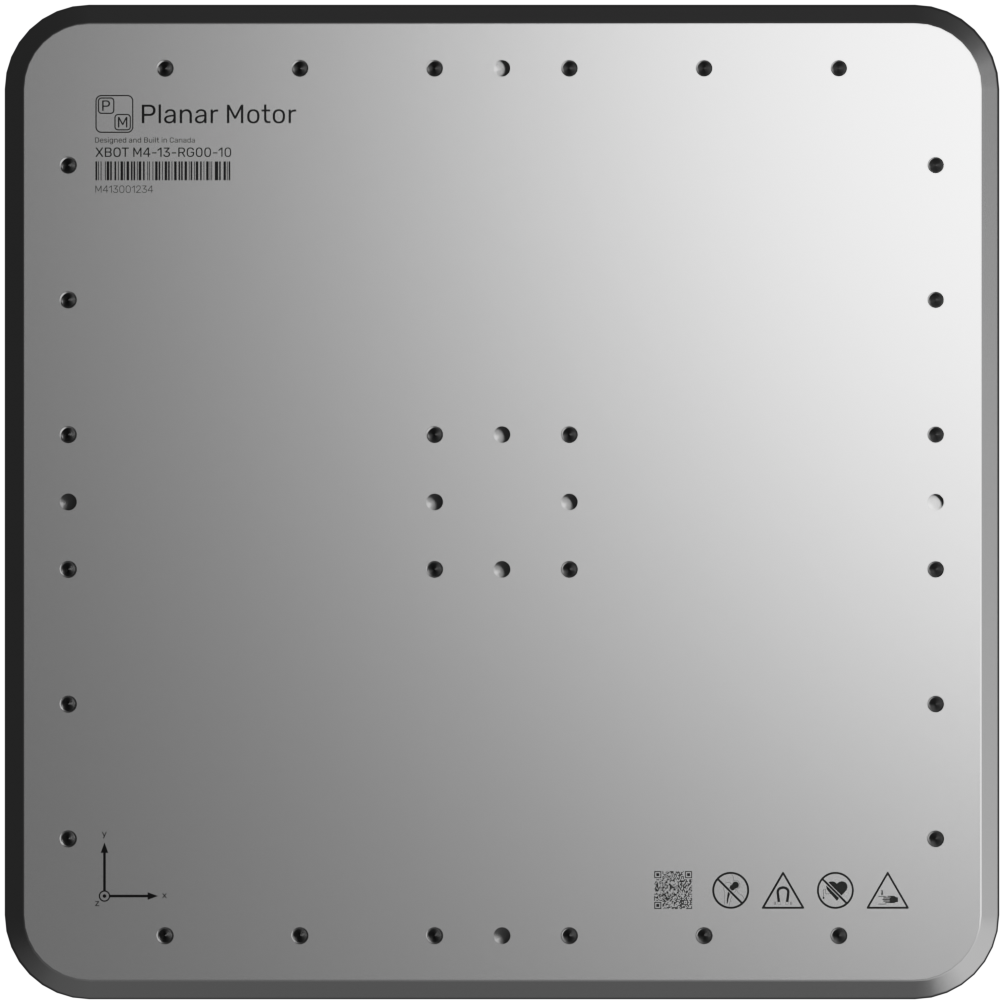

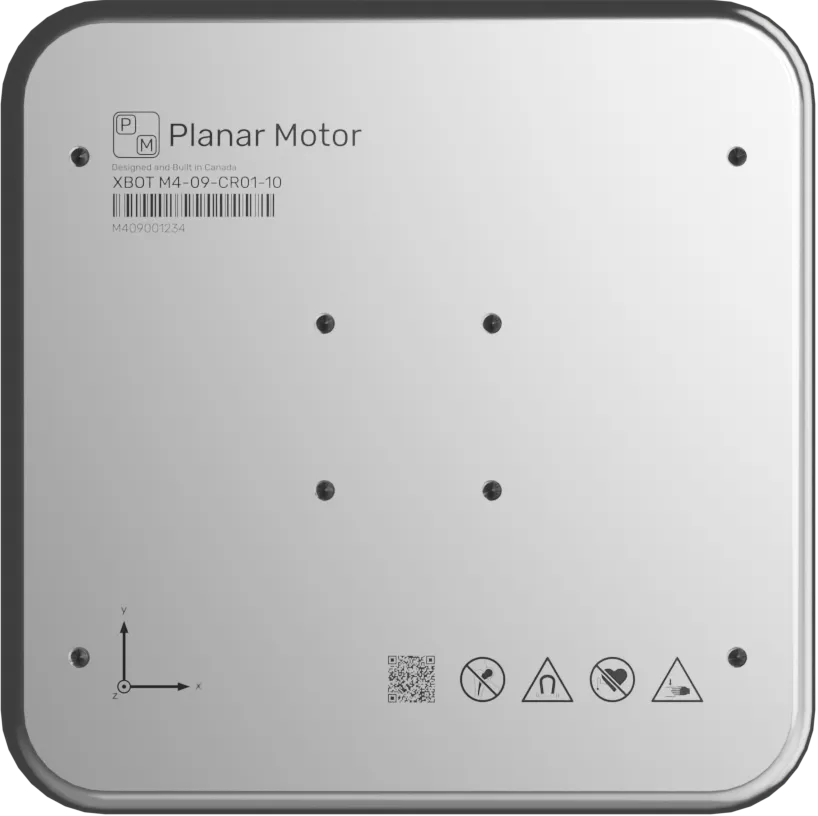

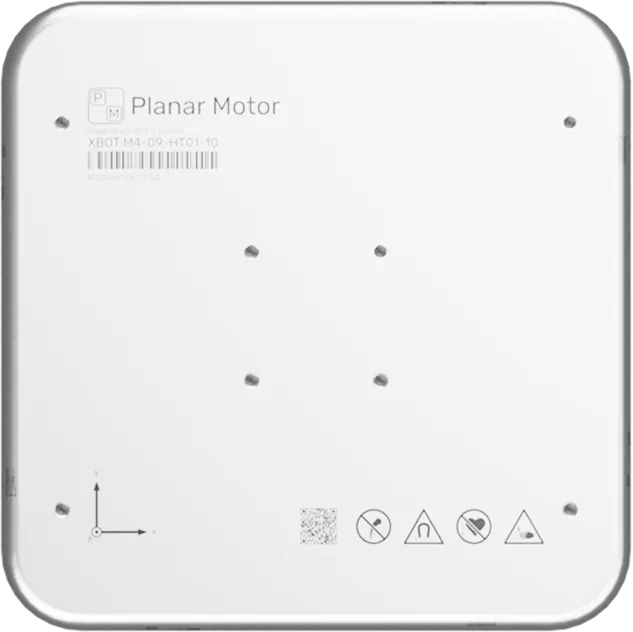

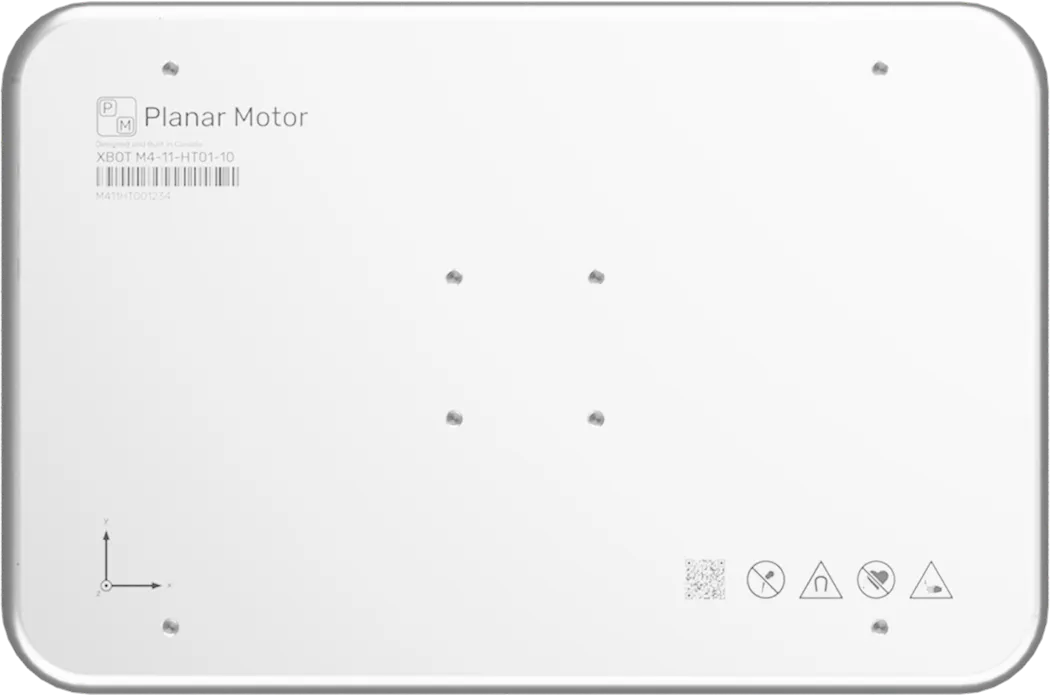

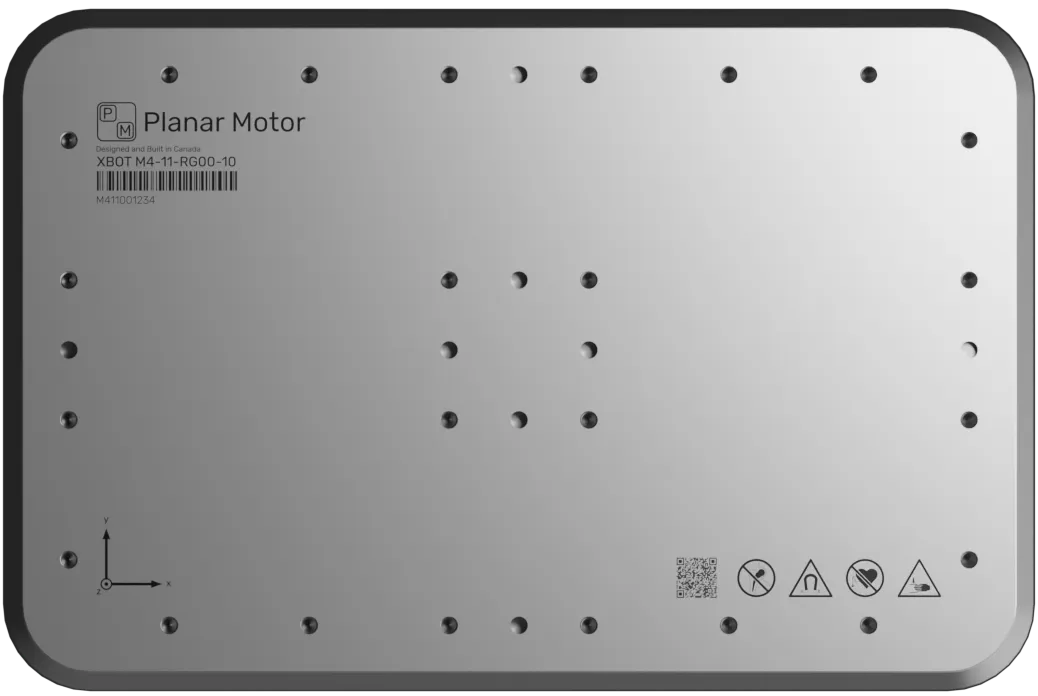

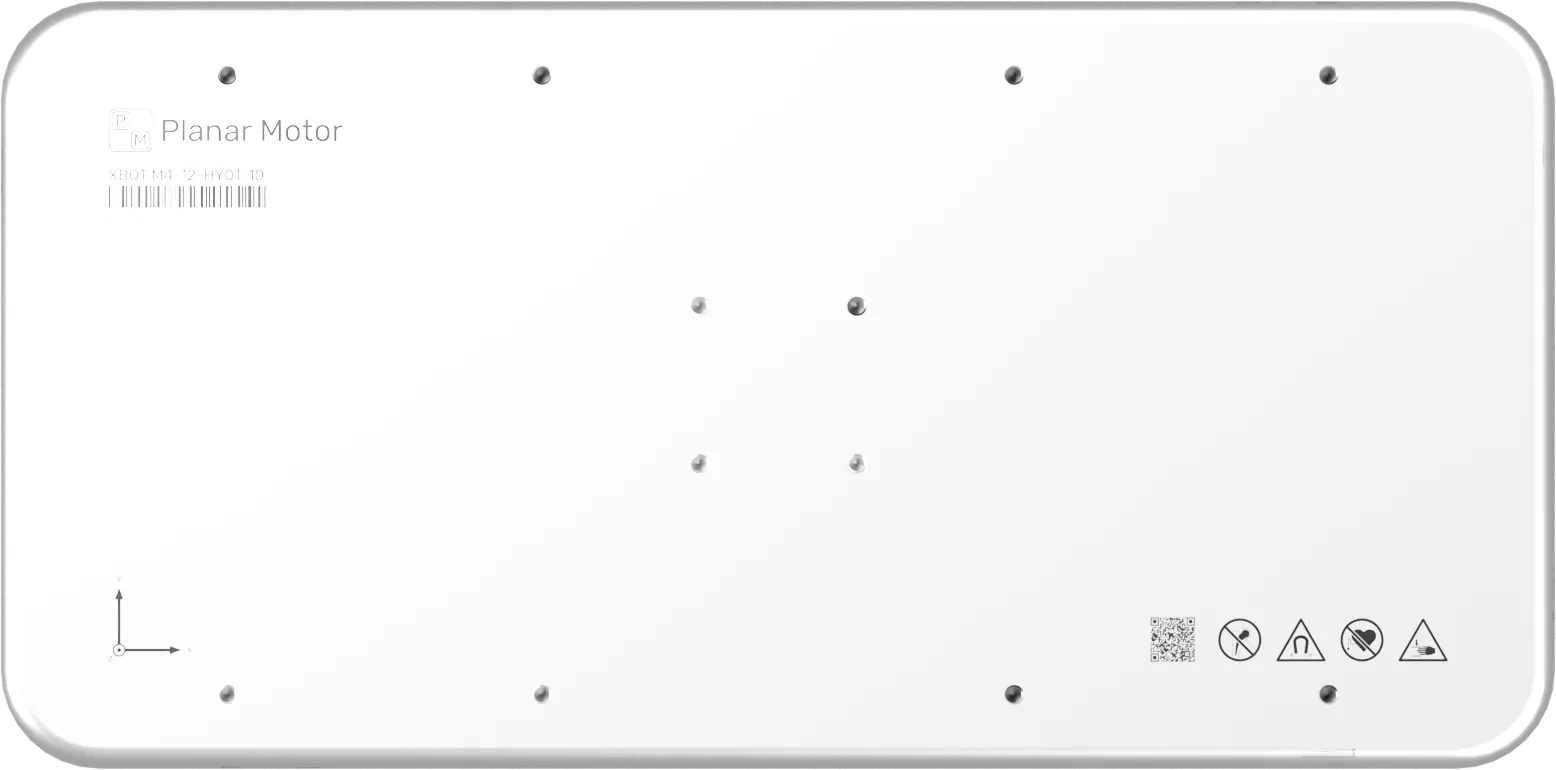

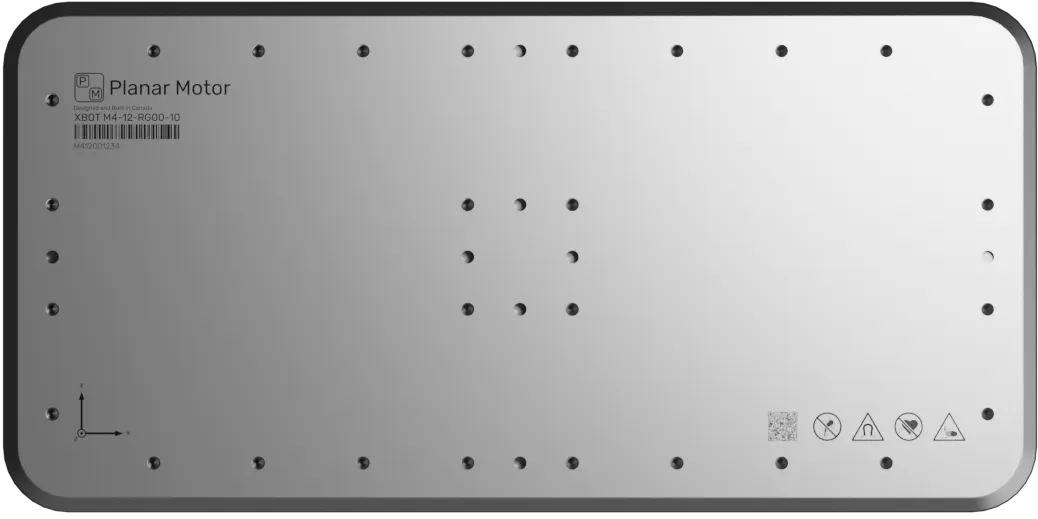

XBots (movers) are magnetically levitated above the surface of Flyways. They rely on incredibly strong directional permanent magnets which focus the magnetic field beneath them and minimize it above the XBot, creating a safe mounting surface for products and accessories. With multiple threaded mounting holes and dowel pin locations, there are many possibilities for fixturing. M4 XBots are available in sizes starting at 160mm x 160mm and larger.
10 different maximum payloads to suit your process.
specs/downloads160 x 160 x 12mm
1.8 kg payload

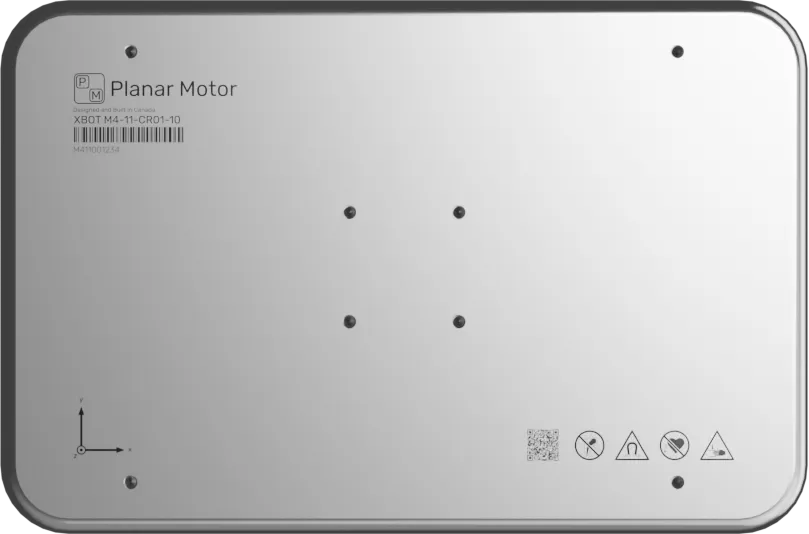

240 x 160 x 12mm
3.0 kg payload

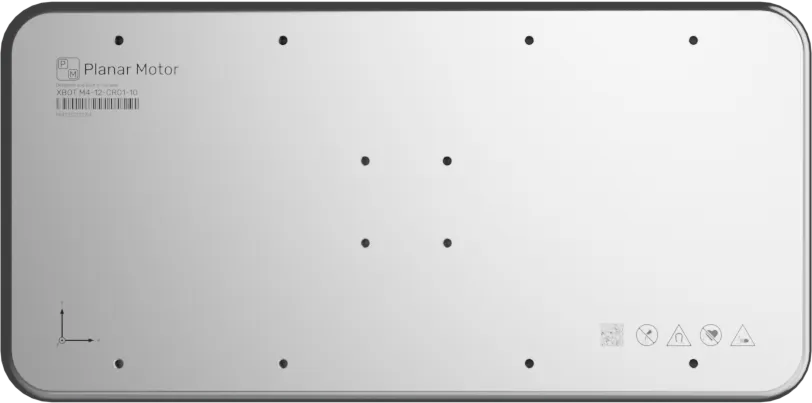

320 x 160 x 12mm
4.2 kg payload

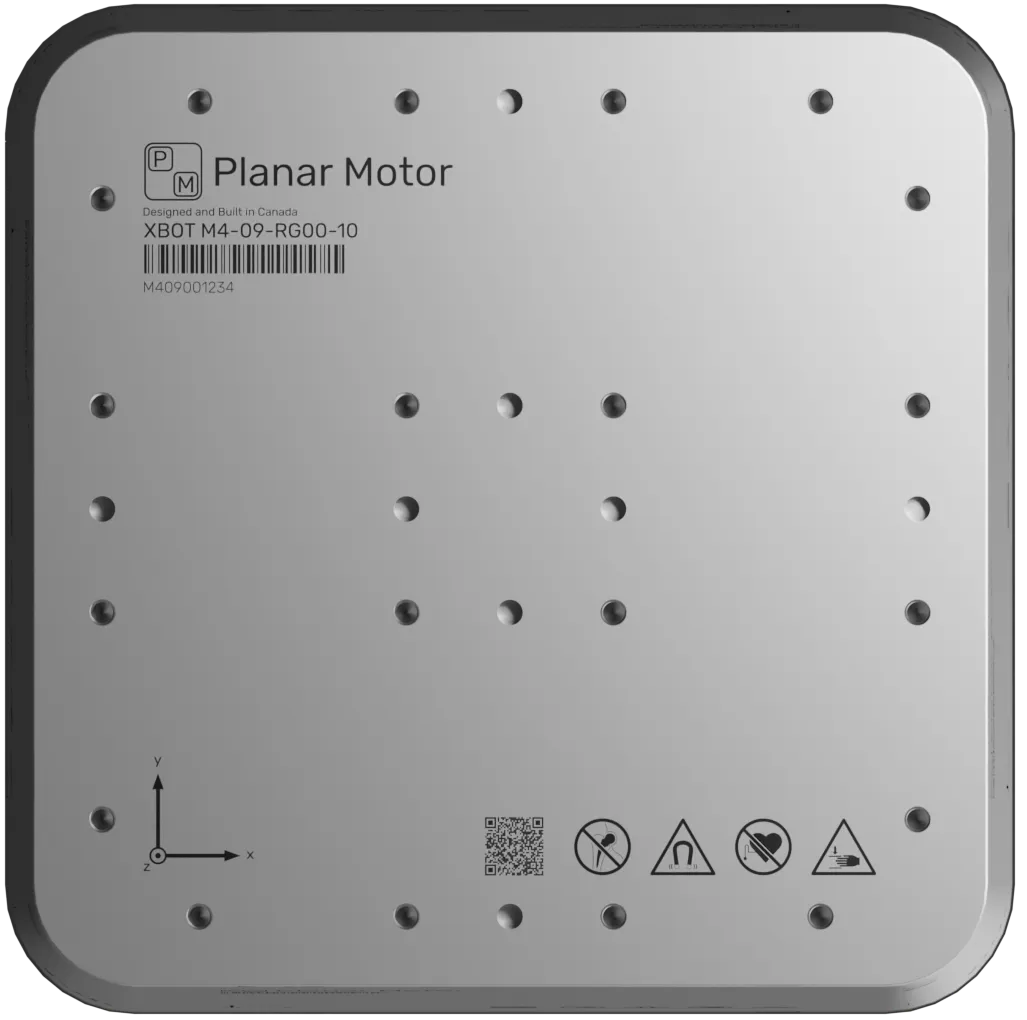

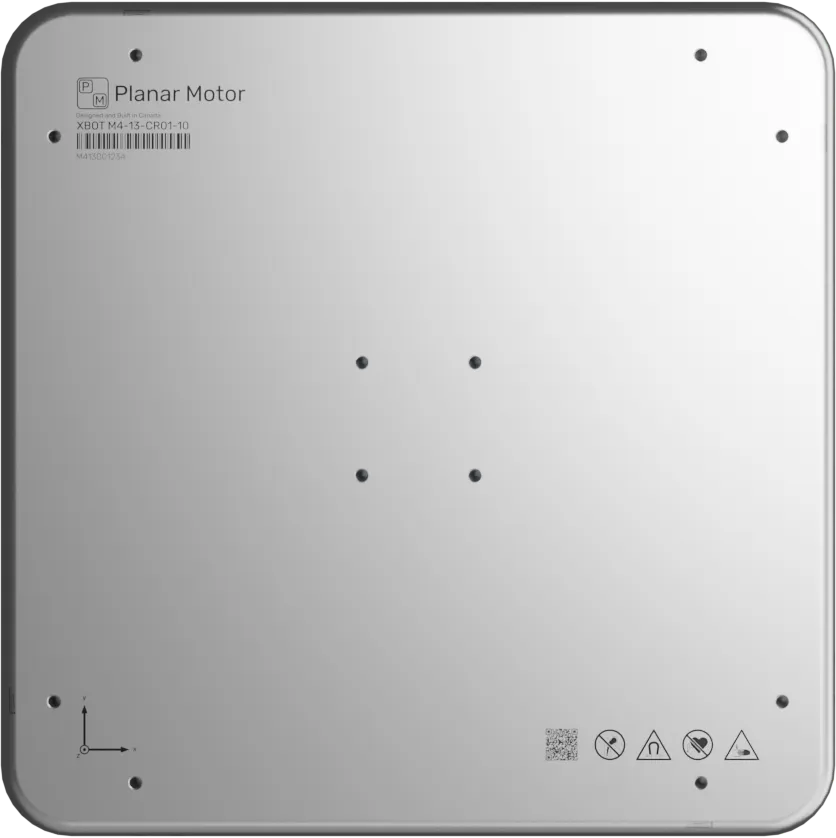

240 x 240 x 12mm
5.0 kg payload
280 x 280 x 12mm
7.0 kg payload

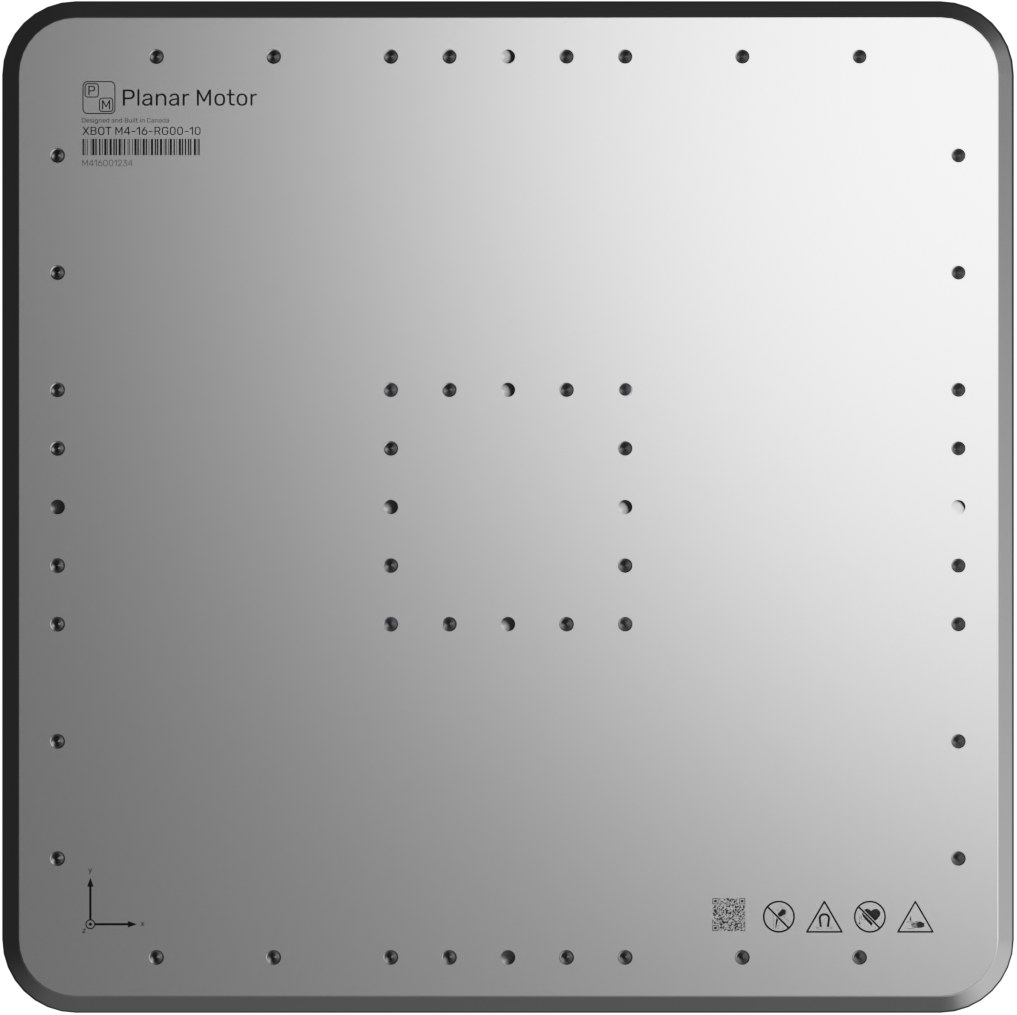

320 x 320 x 12mm
10.0 kg payload

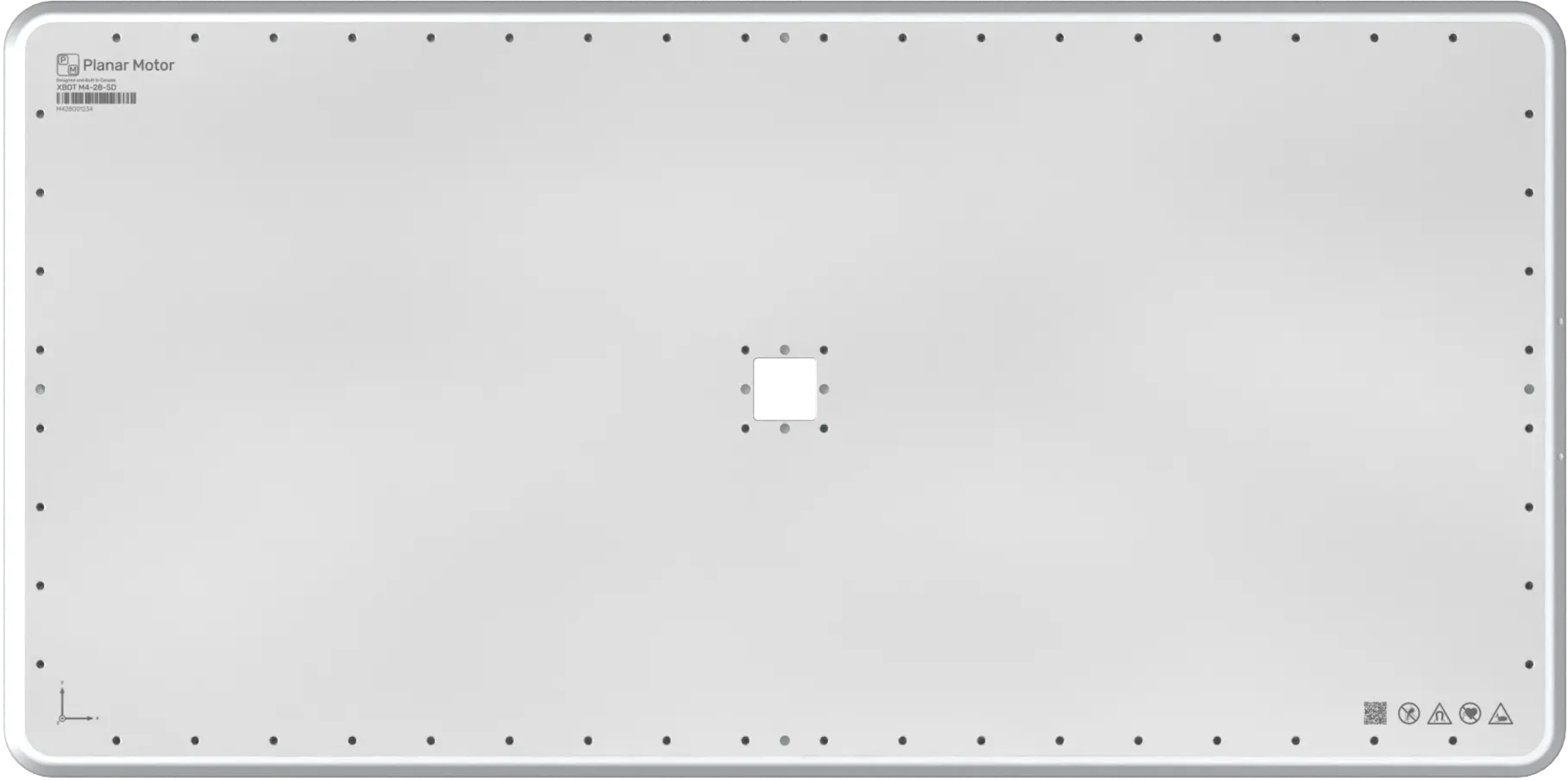

640 x 320 x 13mm
22.0 kg payload
600 x 600 x 18mm
40.0 kg payload
Fully encapsulated in 300-series stainless steel to provide significantly improved durability in comparison with standard variants. Ideally suited for harsh industrial environment.
specs/downloads160 x 160 x 12mm
1.8 kg payload
240 x 160 x 12mm
3.0 kg payload
320 x 160 x 12mm
4.2 kg payload
240 x 240 x 12mm
5.0 kg payload
280 x 280 x 12 mm
7.0 kg payload

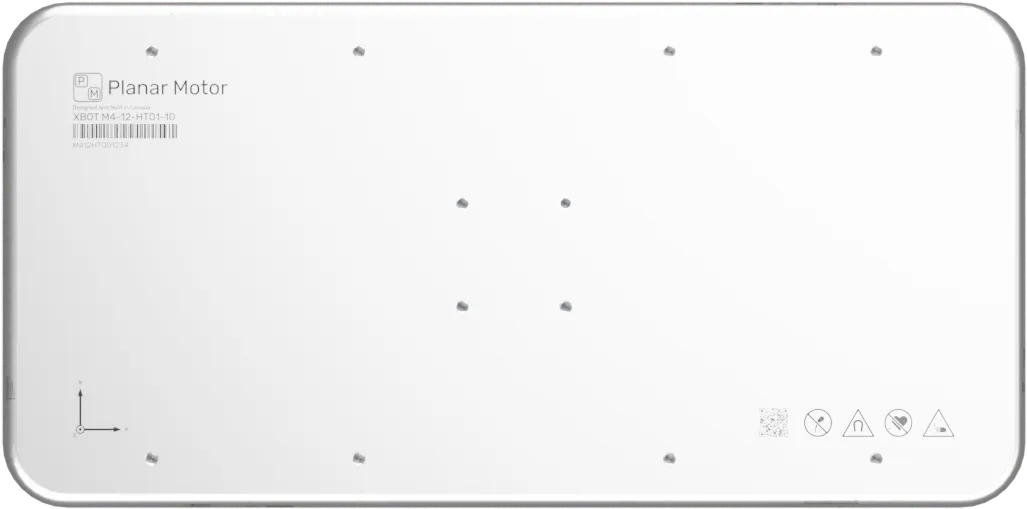

Featuring a specialized superalloy housing designed to resist some of the harshest chemical environments, including high-temperature mineral acids, corrosive halogens, organic compounds, and highly toxic gases.
specs/downloads160 x 160 x 12mm
1.8 kg payload
240 x 160 x 12mm
3.0 kg payload
320 x 160 x 12mm
4.2 kg payload
240 x 240 x 12mm
5.0 kg payload
280 x 280 x 12mm
7.0 kg payload
Fully encapsulated in 316L stainless steel for IP69K rating and VHP resistance.
Additional sizes available upon request.
160 x 160 x 12mm
1.8 kg payload
240 x 160 x 12mm
3.0 kg payload
320 x 160 x 12mm
4.2 kg payload
240 x 240 x 12mm
5.0 kg payload
280 x 280 x 12 mm
7.0 kg payload
Autoclave compatible.
specs/downloads160 x 160 x 12mm
1.8 kg payload
240 x 160 x 12mm
3.0 kg payload
320 x 160 x 12mm
4.2 kg payload
240 x 240 x 12mm
5.0 kg payload
280 x 280 x 12mm
7.0 kg payload
