PMC

PMC

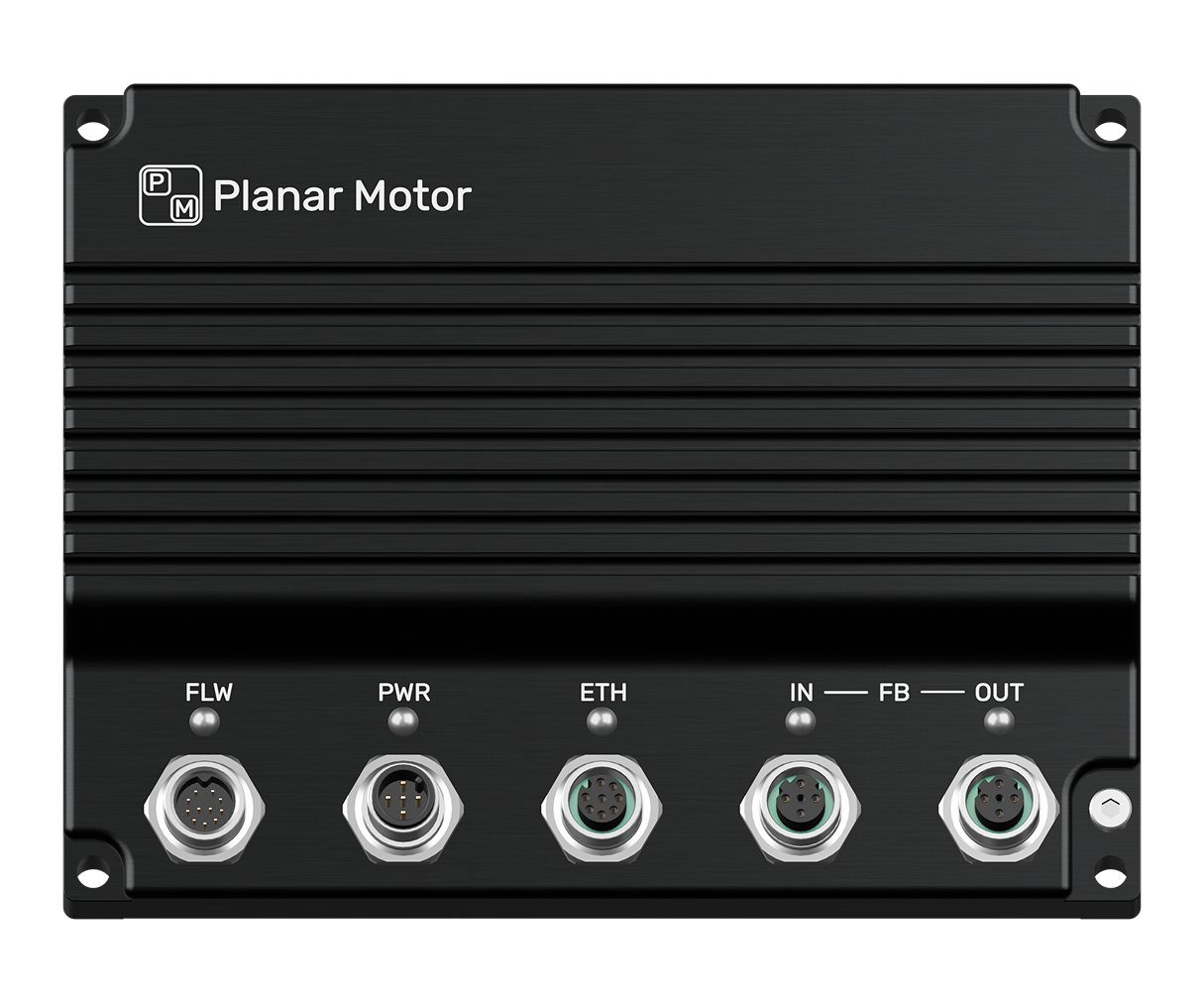

PMCは、Planar Motor Systemの頭脳として、搬送ルートの制御や衝突回避など、すべてのトラフィックを管理します。マルチコアプロセッサを搭載しており、最大140台のXBotと200本のFlywayを同時に制御可能。PMCへの指令はご使用のPLCから、もしくはC#やPython APIを使ってPCから直接送ることができます。

The software stack

One system. Three layers. Full control.

From first layout to full-speed production, every tool you need is built in.

1

Design & simulate

Planar Motor Tool & Application Designer — build Flyway layouts, define stations and motion sequences visually, and validate your system in emulation before touching hardware. Export to Visual Components, iPhysics, or Emulate3D for full-machine simulation.

2

Develop & integrate

PMLib — one unified library across 25+ PLC and PC platforms. Use your existing automation environment (Siemens, Rockwell, Beckhoff, Omron, Keyence, and more) or code directly in Python, C#, MATLAB, or LabVIEW. Your platform. Your choice.

3

Run & produce

Firmware-level collision avoidance with stereotype awareness, auto-driving for system initialization, zone management, stream mode, and conveyor integration — the PMC handles system-level complexity so your code stays focused on process.

完全な互換性

すでに多くのシステムをサポートしており、定期的に新しいシステムも追加しています。

acontis technologies

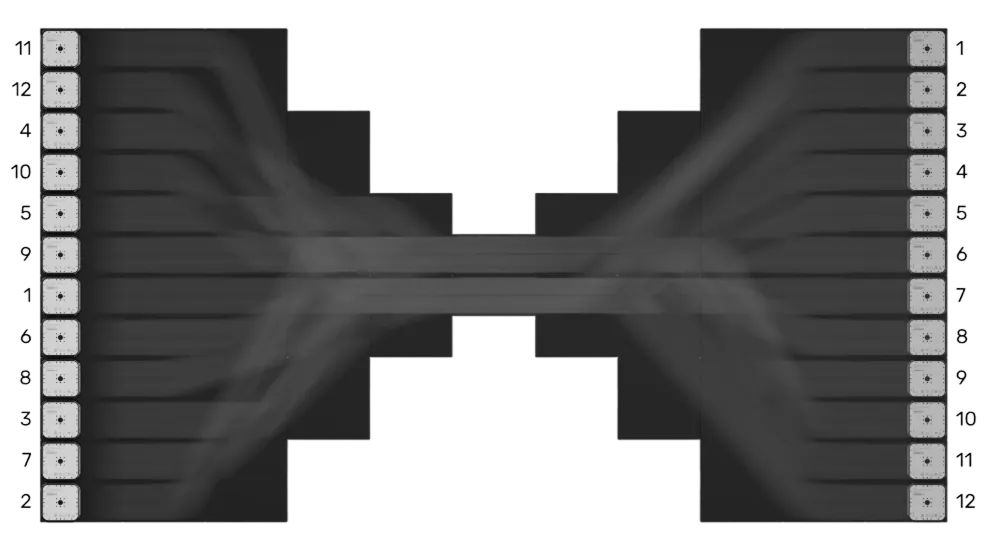

Collision avoidance that knows what you're carrying

Every Planar Motor system includes firmware-level collision avoidance — it's always on, requires zero programming, and works at hardware speed. But what makes it exceptional is stereotype awareness.

Design & simulate

Every Planar Motor system includes firmware-level collision avoidance — it's always on, requires zero programming, and works at hardware speed. But what makes it exceptional is stereotype awareness.

Collisions handled automatically

The PMC factors in every stereotype when calculating safe distances. Wide or overhanging payloads? They'll never collide — guaranteed at the firmware level.

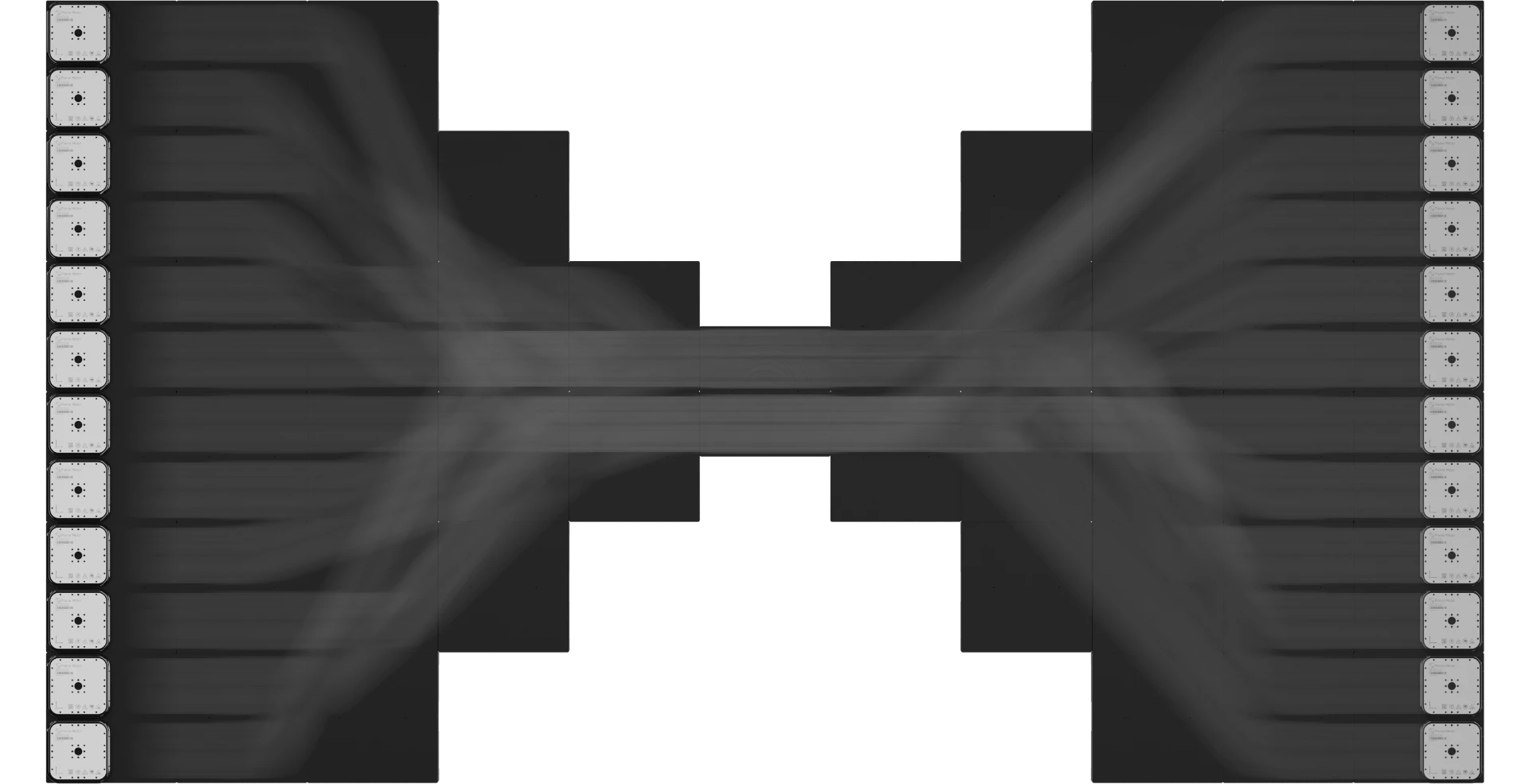

Planar motors moving blurred paths

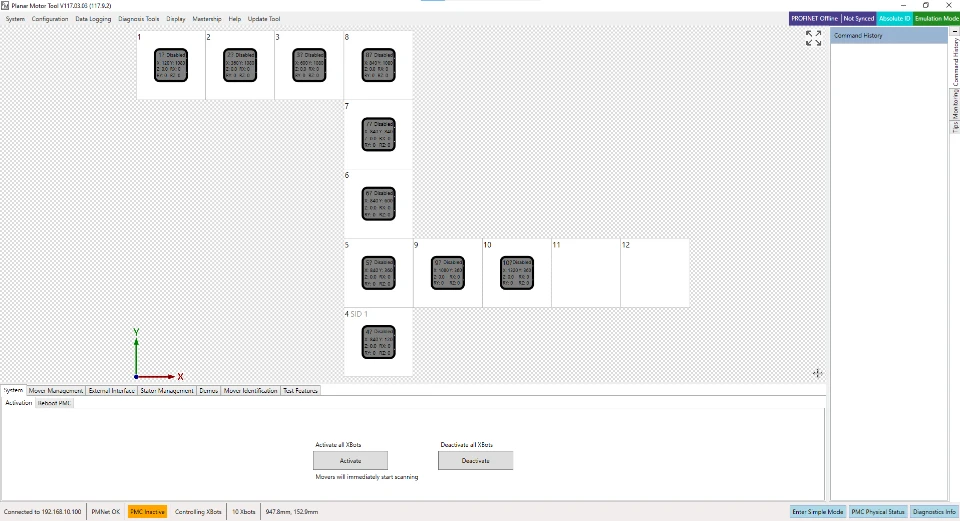

PMI Emulation screenshot

エミュレーション

Planar Motor Tool を使用した実験とテストの後、シームレスに物理システムに移行できます。

シミュレーション

Visual Components・iPhysicsで利用可能な Planar Motor 製品カタログを使用して、システム全体を構築できます。

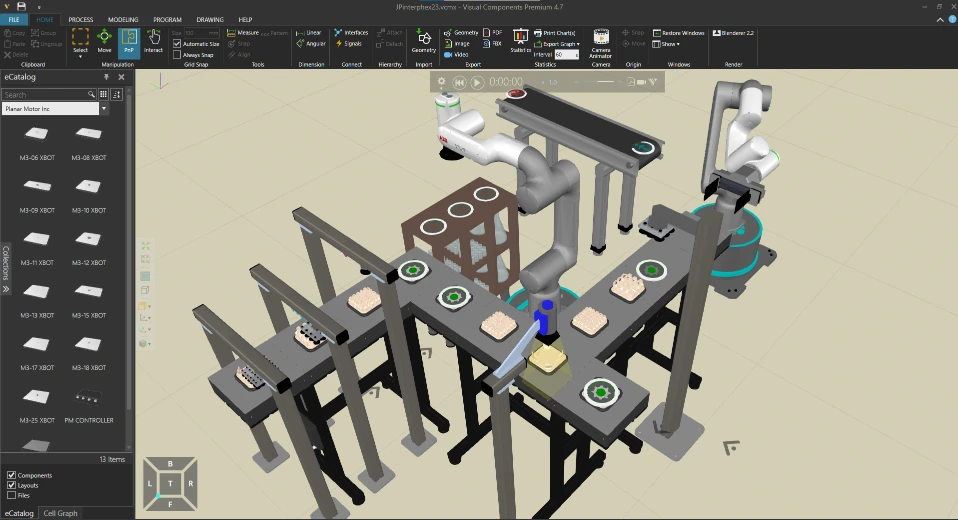

Planar Motor System simulation screenshot

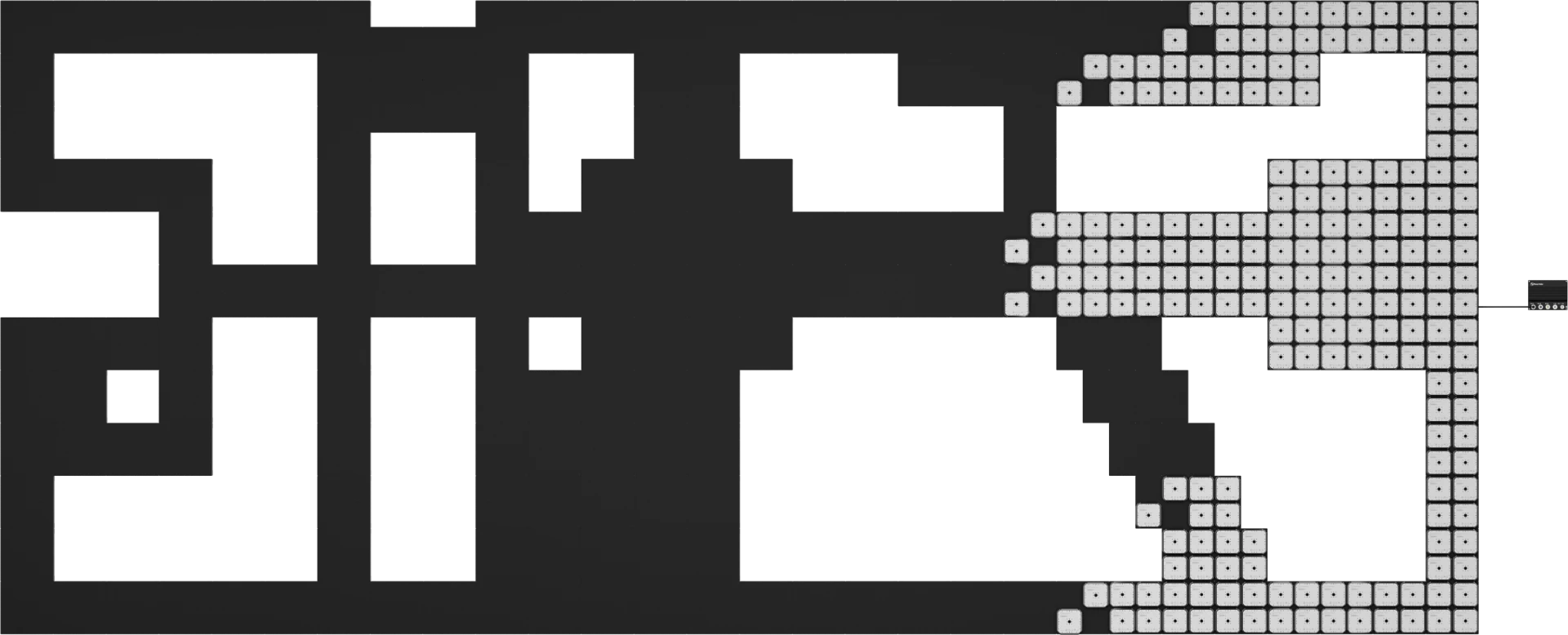

PMC controlling large planar motor system

一つのPMCで

200台のFlywayと140台のXBotをコントロールできます。複数のPMCで無限に拡張できます。

PMC C-6.2

仕様 / ダウンロード

寸法:

179 x 136 x 29.5 mm

重量:

1.0 kg

供給電圧:

18-58 VDC

電力容量:

7 W

防水防塵:

IP65/IP67

冷却方式:

自然空冷

Fieldbus:

EtherCAT, Profinet IRT, Powerlink, EtherNet/IP,CC-Link IE Field, CC-Link IE TSN

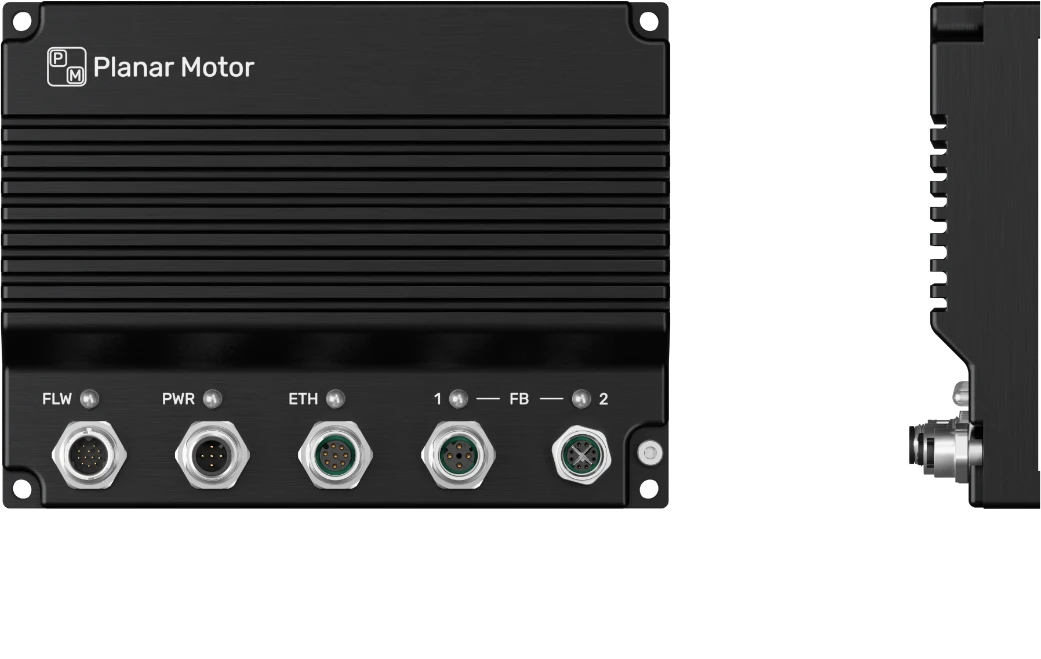

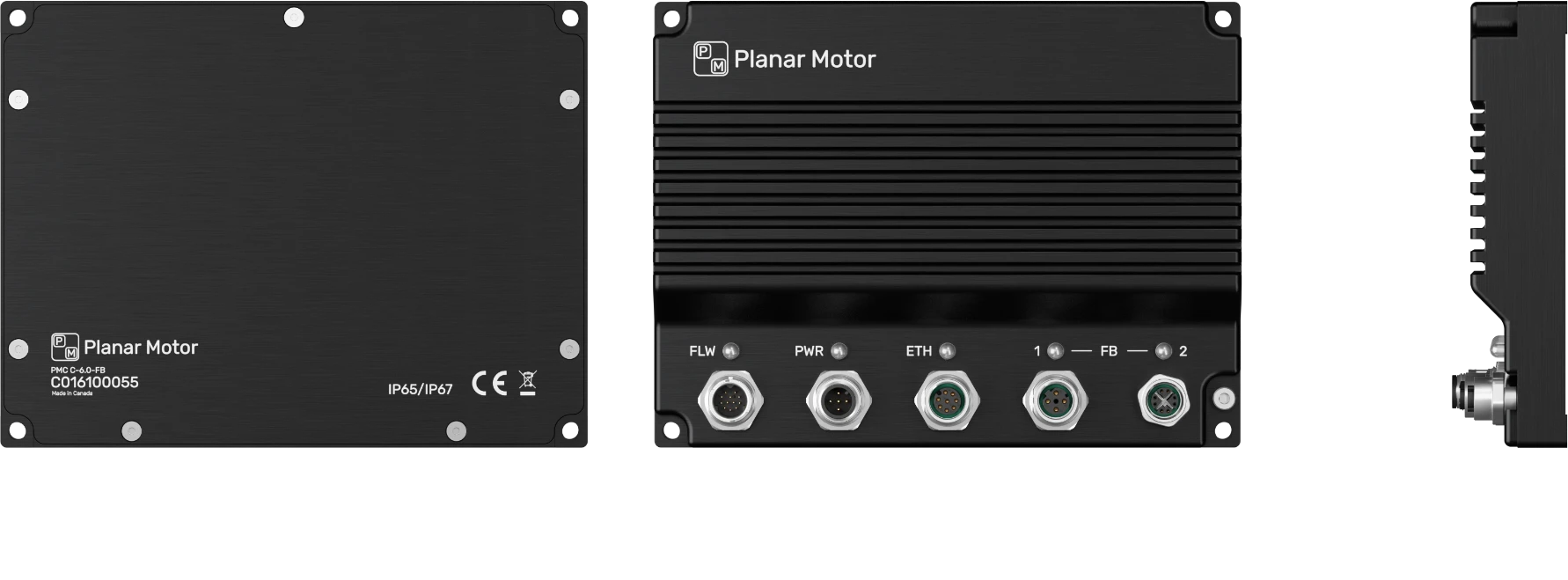

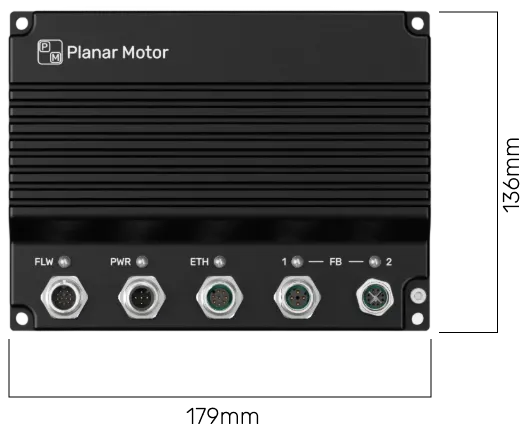

PMC top view with dimensions

PMC back view

PMC side view with dimensions

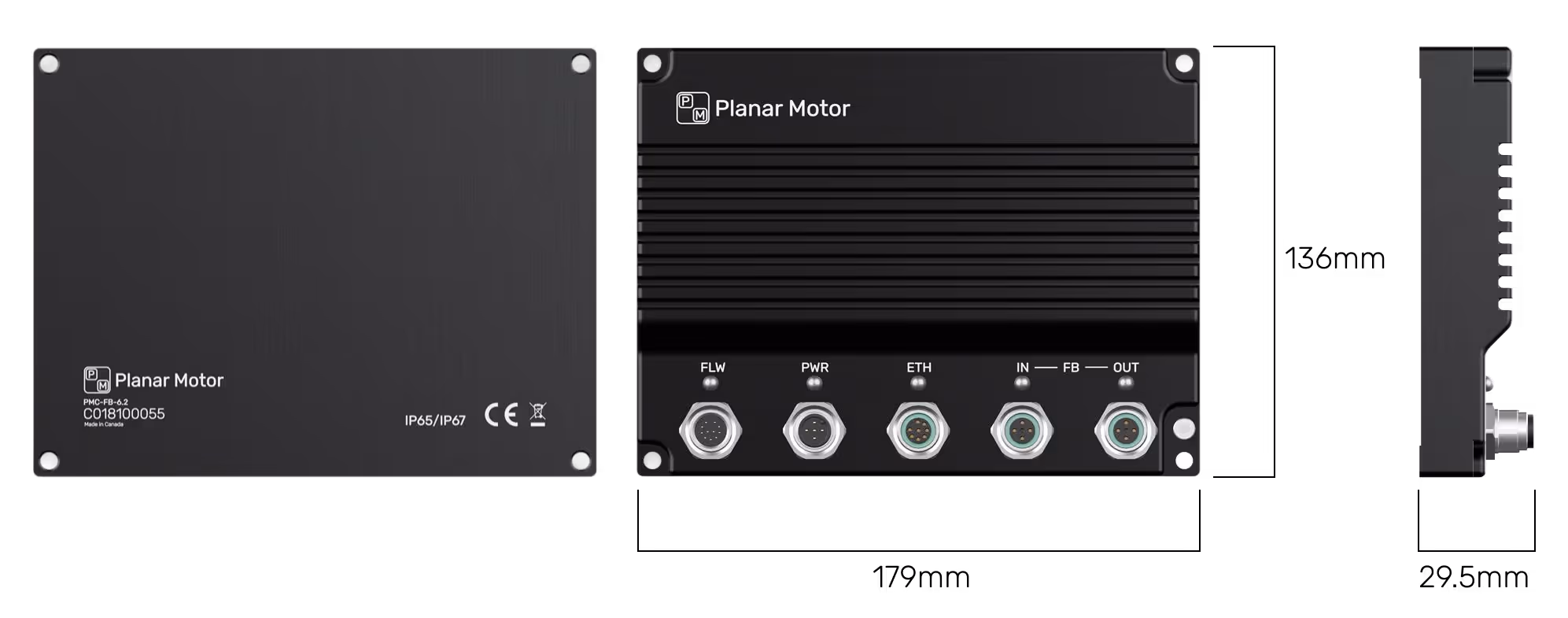

PMC Dimensions

PMC Dimensions
